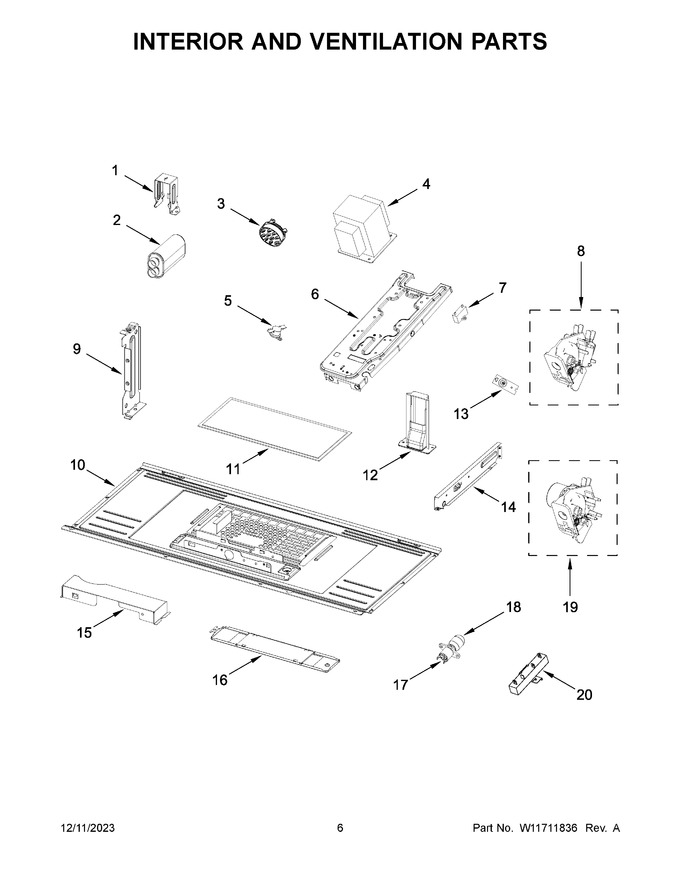

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11265233 | Bracket, Capacitor |
|
- | |||||
| 2 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 167.89 | |||||
| 3 | W10557536 | Sensor, Humidity |
|
$ 109.12 | |||||
| 4 | W11545872 | Transformer, High Voltage (Replaces: W11540982) |
|
$ 230.39 | |||||
| 5 | W10668273 | Thermostat, Cavity |
|
Immediately | $ 23.30 | ||||
| 6 | W11268348 | Plate, Chassis |
|
- | |||||
| 7 | W11405831 | Capacitor, Hood Motor (Replaces: W10605897) |
|
$ 38.03 | |||||
| 8 | W11182140 | Assembly, Upper Interlock (includes Switches) (Replaces: W11169310) |
|
Immediately | $ 38.60 | ||||
| 9 | W10313275 | Bracket, Top Cavity |
|
$ 30.53 | |||||
| 10 | W11295401 | Panel, Bottom |
|
$ 115.46 | |||||
| 11 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 13.22 | ||||
| 12 | W11376573 | Plate, Waterproof |
|
- | |||||
| 13 | W10163422 | Thermistor |
|
$ 154.03 | |||||
| 14 | W11295335 | Support, Ntc |
|
- | |||||
| 15 | W11361503 | Reflector, Lamp |
|
- | |||||
| 16 | W11295403 | Cover, Lamp |
|
- | |||||
| 17 | W10210871 | Holder, Lamp |
|
Immediately | $ 5.75 | ||||
| 18 | 8206232A | Bulb, Lamp (Replaces: 8206232) |
|
Immediately | $ 6.61 | ||||
| 19 | W11182141 | Assembly, Lower Interlock (includes Switches) (Replaces: W11169312) |
|
Immediately | $ 28.13 | ||||
| 20 | W11259892 | Resistor, Cement |
|
Immediately | $ 35.19 |
