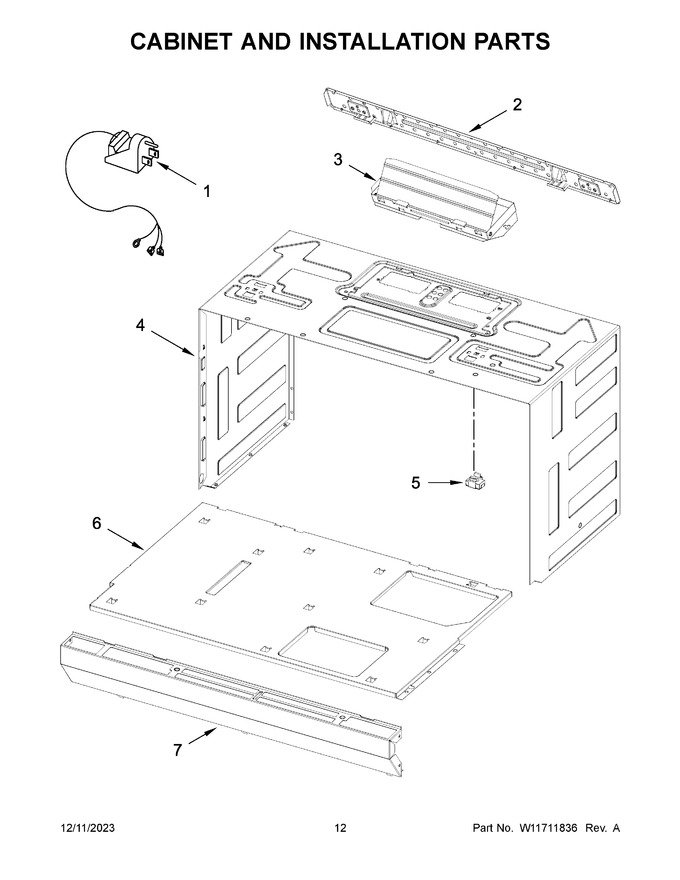

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 18.48 | |||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11776420 | Case, Outer (black) (Replaces: W11207441) |
|
Immediately | $ 156.14 | ||||
| 5 | W11122643 | Assembly, Mounting Nut |
|
Immediately | $ 12.31 | ||||
| 6 | W11268327 | Assembly, Top Insulation |
|
- | |||||
| 7 | W10845642 | Grille, Vent (white) |
|
$ 86.71 | |||||
| 7A | W10845643 | Grille, Vent (black) |
|
$ 92.87 | |||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.47 | ||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 88.90 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 21.50 | |||||
| NI | W11334600 | Miscellaneous Parts, Harness, Magnetron To Hvt |
|
$ 126.95 | |||||
| NI | W11383534 | Miscellaneous Parts, Harness, Main (Replaces: W11243462) |
|
Immediately | $ 133.65 |
