01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

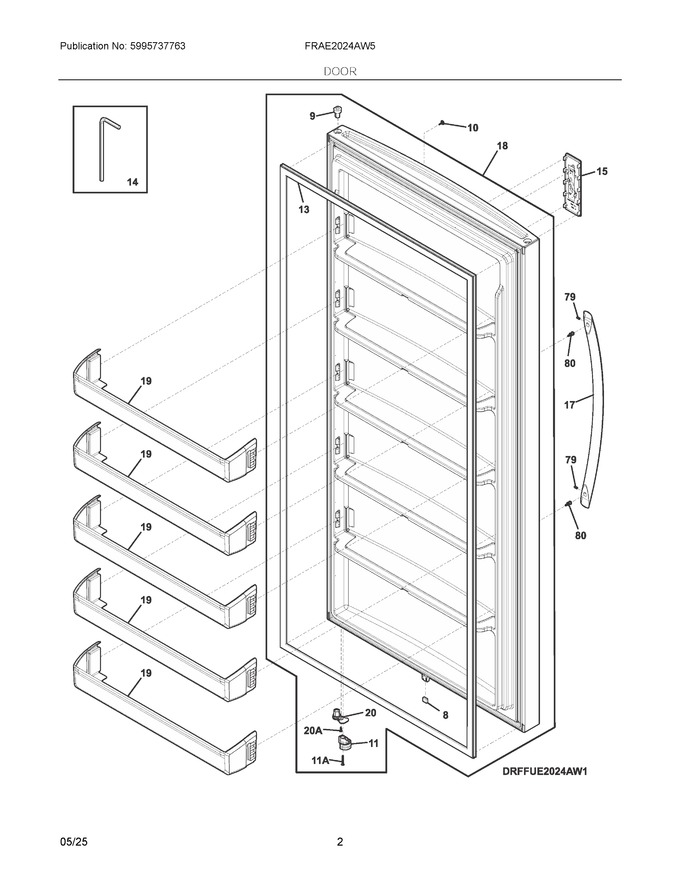

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
9	5304519757		Bearing, Hinge, White			Immediately	$ 7.30
11	5304519789		Hook, Door Closer, White			Immediately	$ 4.55
13	140190906861		Gasket, Door, Gray   (Replaces: 5304524887)			Immediately	$ 112.54
14	241601002		Wrench, Allen		Appelez-nous	-
15	5304524098		User Interface, Assembly, W/pc Board				$ 163.81
17	5304511770		Handle-door, Stainless   (Replaces: 5304510343)			Immediately	$ 229.03
18	5304531521		Door Assembly, Freezer, White, W/gasket-hrdwre				$ 383.32
19	5304524110		Shelf, Door, Clear			Immediately	$ 39.04
20	5304523784		Bearing, Door, Lower				$ 7.23
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
11A	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
20A	5304453707		Screw, Quad Hilo, #8-18 X 0.50   (Replaces: 241953901)			Immediately	$ 15.92
NI	5304524123		Harness, Jumper, Cabinet, To Door				$ 24.08
NIA	240494001		Button, Plug, White			Immediately	$ 18.20
