01 - Cover Sheet
02 - Door

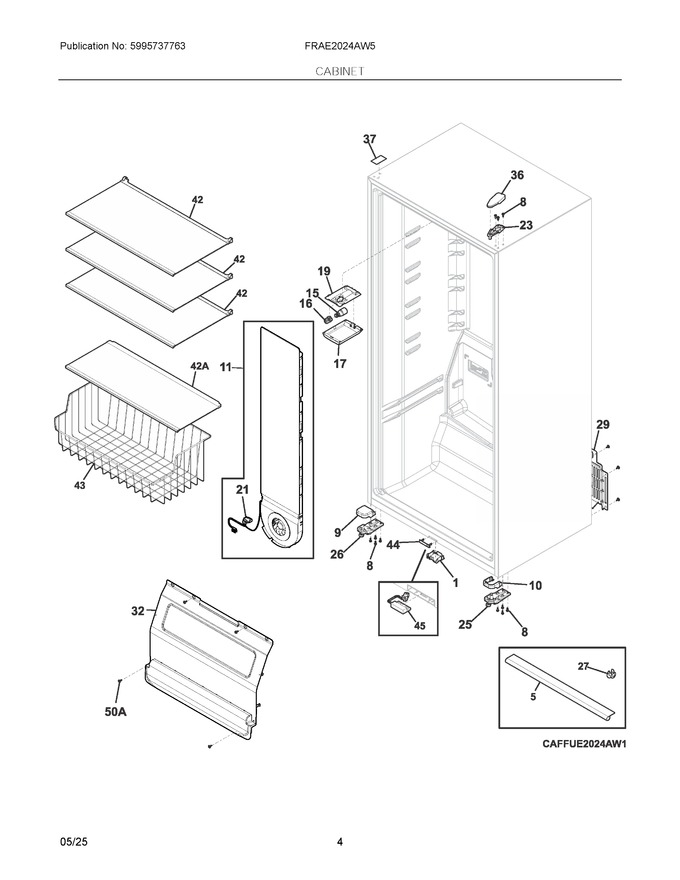

03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 7.96 | ||||
| 5 | 5304524149 | Channel, Wiring Harness |
|
$ 39.04 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 5304519777 | Cover, Hinge, White, Lower, Non Hinged |
|
$ 5.07 | |||||
| 10 | 5304522244 | Cover, Hinge Side, White, Lower |
|
$ 4.47 | |||||
| 11 | 5303918891 | Air Tower Assenmbly, Complete, W/motor-heater |
|
Immediately | $ 121.98 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 10.62 | ||||
| 17 | 5304523778 | Cover, Lens |
|
Immediately | $ 14.15 | ||||
| 19 | 5304523777 | Mount, Socket |
|
$ 7.96 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 23 | 5304523689 | Hinge, Upper |
|
$ 11.57 | |||||
| 25 | 5304529045 | Hinge-bottom, Assembly, Rh, W/foot-closer |
|
$ 45.55 | |||||
| 26 | 5304523747 | Hinge-bottom, Assembly, Lh Non Hinged, W/foot |
|
$ 41.21 | |||||
| 27 | 5304524141 | Spacer, Roller, Lower Hinge |
|
$ 9.41 | |||||
| 29 | 140295425015 | Cover-dust U20/tt, 29 # (Replaces: 5304535414) |
|
- | |||||
| 32 | 5304534437 | Cover Assembly, Evaporator, W/insulation |
|
Immediately | $ 102.83 | ||||
| 36 | 5304530010 | Cover, Upper Hinge, White |
|
Immediately | $ 6.95 | ||||
| 37 | 5304523313 | Label, Blank, White, Hole Cover |
|
Immediately | $ 3.55 | ||||
| 42 | 5304536377 | Shelf Assembly, Glass, Large, W/trim (Replaces: 5304524074) |
|
Immediately | $ 51.45 | ||||
| 43 | 5304537472 | Basket-lower, Wire U20 (gray) (Replaces: 5304536776) |
|
Immediately | $ 36.47 | ||||
| 44 | 5304524130 | Cover, Reed Switch, Front |
|
$ 10.63 | |||||
| 45 | 5304527992 | Reed Switch Harness, Assembly |
|
Immediately | $ 81.69 | ||||
| 42A | 5304536378 | Shelf Assembly, Glass, Small, W/trim (Replaces: 5304524026) |
|
$ 38.90 | |||||
| 50A | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 6.51 | |||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NI | 5304524123 | Harness, Jumper, Cabinet, To Door |
|
$ 24.08 | |||||
| NIA | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| NIA | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| NIA | 5303918733 | Tape, Aluminum, 36mm (Replaces: 5304522179) |
|
Immediately | $ 4.26 | ||||
| NIA | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NIB | 5304537226 | Harness, Jumper, Foil Heater (Replaces: 5304531524) |
|
Immediately | $ 45.15 |
