View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

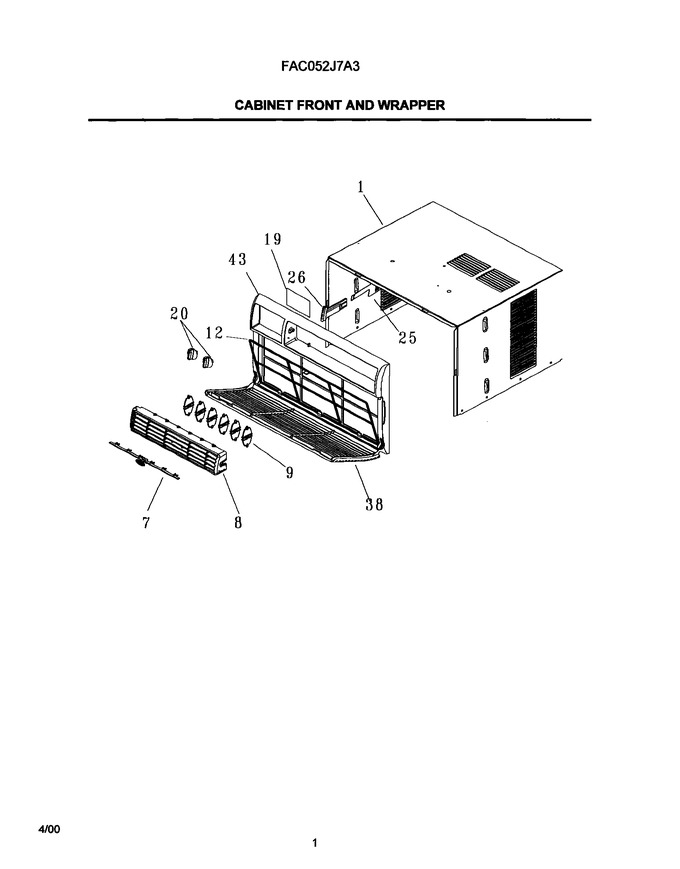

02 - Cabinet Front And Wrapper
04 - Control Parts
06 - Air Handling Parts
08 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304413783 | Cabinet |
|
- | |||||
| 7 | 309638001 | Link/handle |
|
- | |||||
| 8 | 309639301 | Louver,horizontal |
|
- | |||||
| 9 | 309342001 | Louver,vertical ,(6) |
|
- | |||||
| 12 | 3096343501 | Filter-mesh |
|
- | |||||
| 17 | 309640102 | Front Cabinet, Complete |
|
- | |||||
| 19 | 309342902 | Dial Plate |
|
- | |||||
| 20 | 309306811 | Knob, Control |
|
$ 45.73 | |||||
| 25 | N/A | Door-vent Actuator Hdtc |
|
- | |||||
| 26 | N/A | Handle-vent |
|
- | |||||
| 38 | 309639201 | Panel-front |
|
- | |||||
| 43 | 309639101 | Frame-frnt |
|
- | |||||
| 26A | N/A | Vent-detent |
|
- | |||||
| NI | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| NI | 309640202 | Louver Assy,horizontal ,incl-7,8,9 |
|
- |
