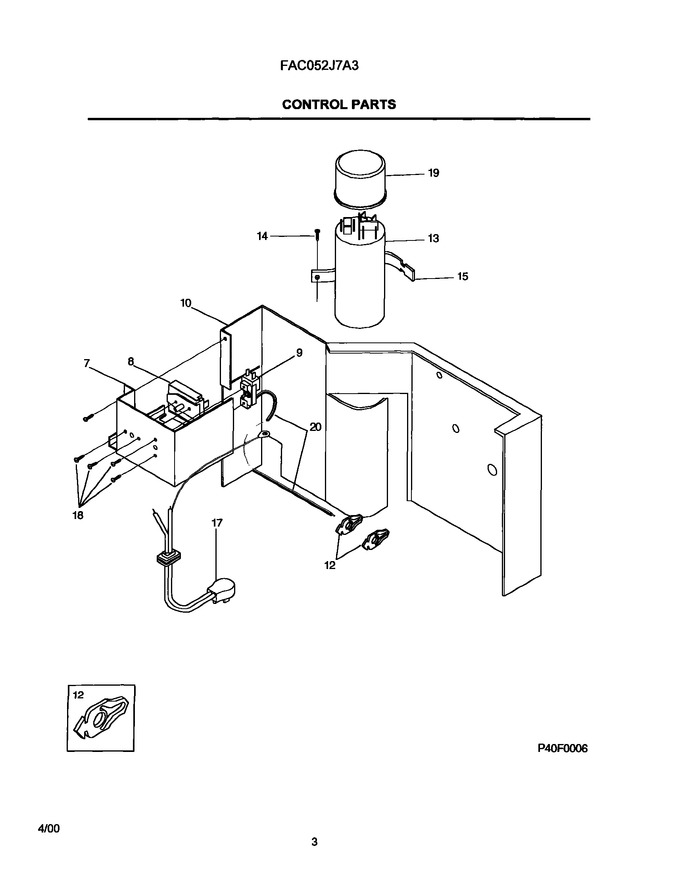

04 - Control Parts
06 - Air Handling Parts
08 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309602502 | Box-control |
|
- | |||||
| 10 | 309602403 | Bulkhead |
|
- | |||||
| 12 | 309101202 | Clip-control Bulb |
|
- | |||||
| 14 | 5303303691 | Screw, 8-18ab X .47 |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 18 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- | |||||
| F13 | 5303303125 | Capacitor, 370v, 35 + 7.5 Mfd |
|
- | |||||
| F17 | 309343101 | Cord-power 115v |
|
- | |||||
| F8 | 5304410837 | Switch-selector |
|
- | |||||
| F9 | 5303302838 | Control-temperature |
|
- |
