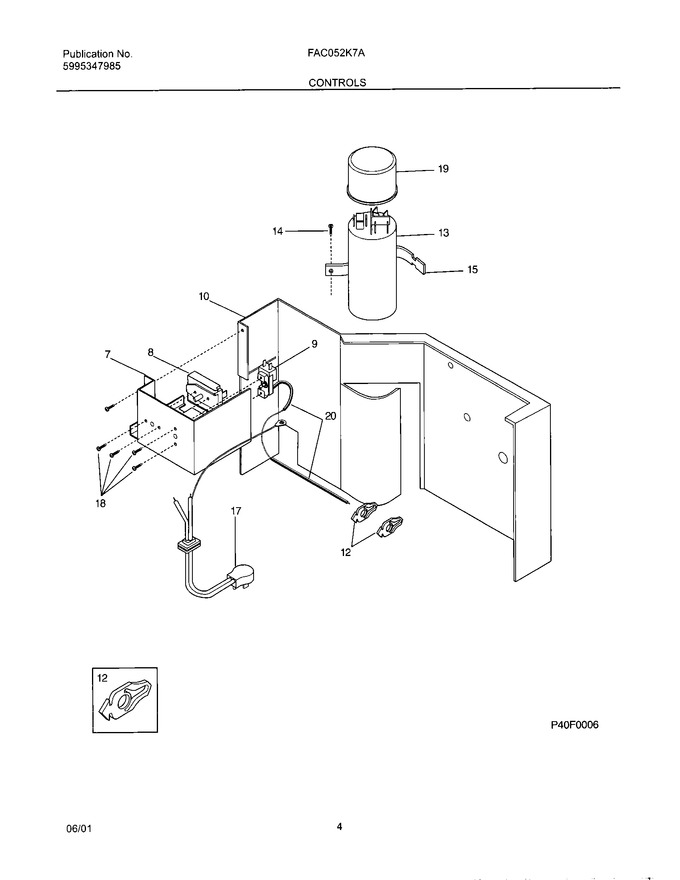

05 - Controls


07 - Air Handling


09 - Compressor


11 - Window Mounting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309350302		Control Box		Appelez-nous	-
8	5304410837		Switch-selector,5 Position		Appelez-nous	-
9	5304402838		Control-temperature		Appelez-nous	-
10	309602404		Bulkhead		Appelez-nous	-
12	309101202		Clip-control Bulb, (2)		Appelez-nous	-
13	5304413779		Capacitor		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
15	5303303086		Strap-capacitor		Appelez-nous	-
17	309343101		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
19	5303302855		Cover-capacitor		Appelez-nous	-
20	5303002600		Sleeve, Control		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
