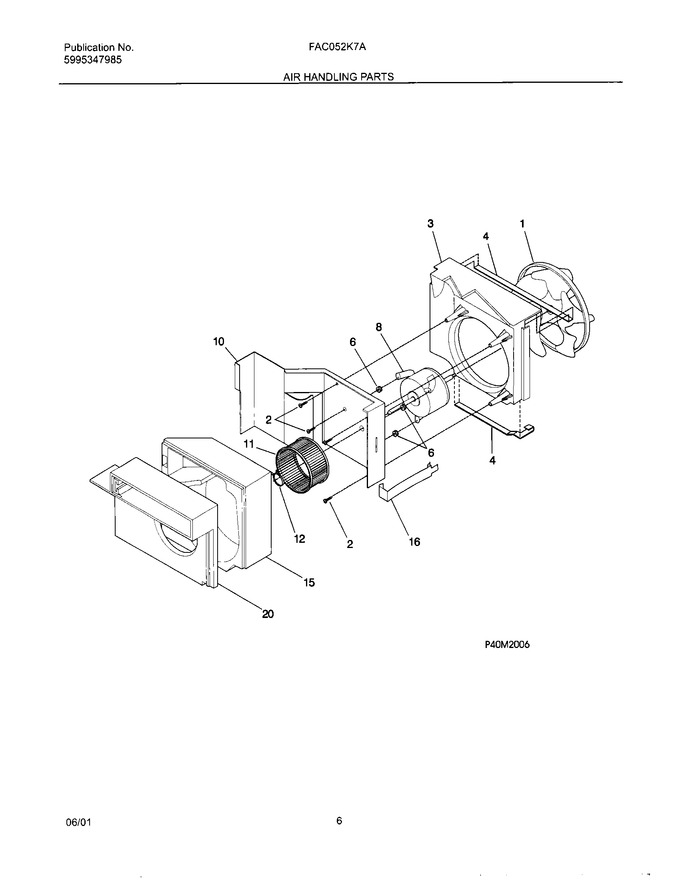

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
05 - Controls
07 - Air Handling
09 - Compressor
11 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309624506 | Fan Blade,with Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309624201 | Housing-fan |
|
- | |||||
| 4 | 5303270043 | Seal, Condenser |
|
- | |||||
| 6 | 08007481 | Nut |
|
$ 5.81 | |||||
| 8 | 309642701 | Motor-fan |
|
- | |||||
| 10 | 309602403 | Bulkhead |
|
- | |||||
| 11 | 309631702 | Blower Wheel |
|
- | |||||
| 12 | 327161302 | Clamp-blower |
|
- | |||||
| 15 | 5304407653 | Housing-blower |
|
- | |||||
| 16 | 309100201 | Clip |
|
- | |||||
| 20 | 5303303573 | Plate-blower Housing |
|
- |
