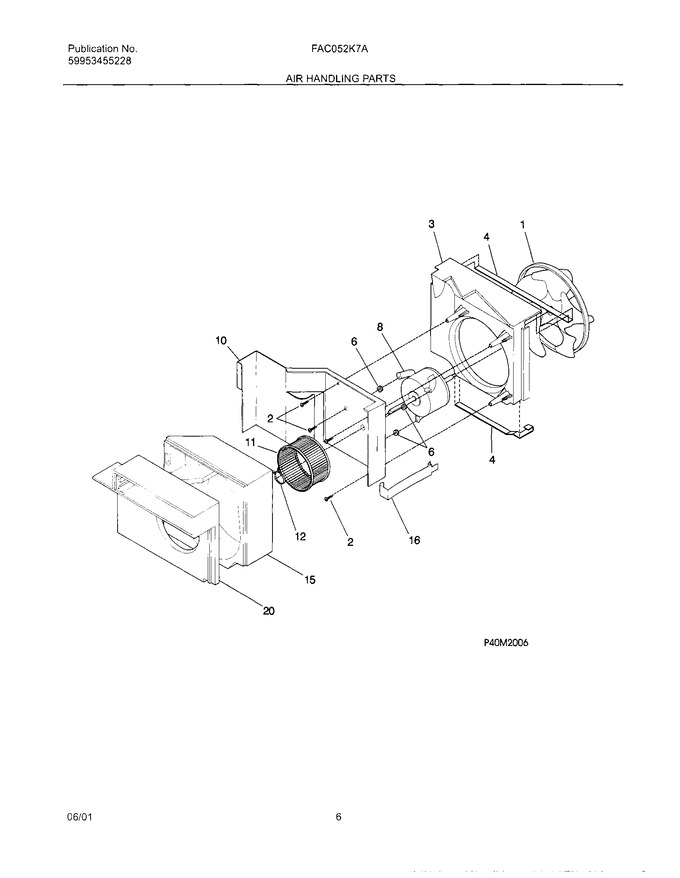

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	309624201		Housing-fan		Appelez-nous	-
4	5304421913		Seal-condenser Top		Appelez-nous	-
4	5304423359		Seal,condenser ,bottom		Appelez-nous	-
6	08007481		Nut				$ 5.81
7	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
10	309602404		Bulkhead		Appelez-nous	-
12	327161302		Clamp-blower		Appelez-nous	-
15	5304407653		Housing-blower		Appelez-nous	-
16	309100201		Clip		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
20	5303303573		Plate-blower Housing		Appelez-nous	-
F1	309624506		Fan Blade,with Clamp		Appelez-nous	-
F11	309631702		Blower Wheel		Appelez-nous	-
F8	309642701		Motor-fan		Appelez-nous	-
