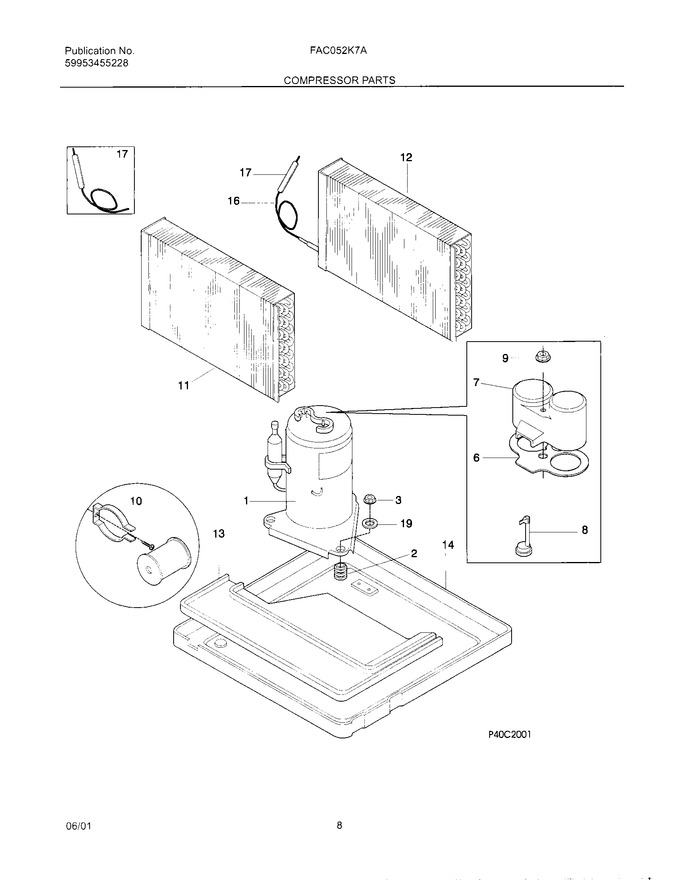

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303291330		Gasket,terminal Cover		Appelez-nous	-
7	5304416126		Cover-terminal,compressor		Appelez-nous	-
7	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
9	5303294292		Nut-terminal Cover		Appelez-nous	-
13	5303302849		Tray-evaporator		Appelez-nous	-
14	5304413780		Base-compressor		Appelez-nous	-
16	5308017120		Capillary Tube,45 Inch Long ,cut To Length		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
F1	5304417319		Compressor		Appelez-nous	-
F10	5303317601		Start Assist Kit,compressor				$ 148.05
F11	309355101		Evaporator Assy,1r/21fpi 7mm		Appelez-nous	-
F12	309355002		Condenser Assy,7mm;2row/21fpi		Appelez-nous	-
F17	309113401		Tube-process		Appelez-nous	-
F8	5304417320		Overload Protector		Appelez-nous	-
NI	5303293809		Washer		Appelez-nous	-
NI	309112501		Washer,metallic		Appelez-nous	-
