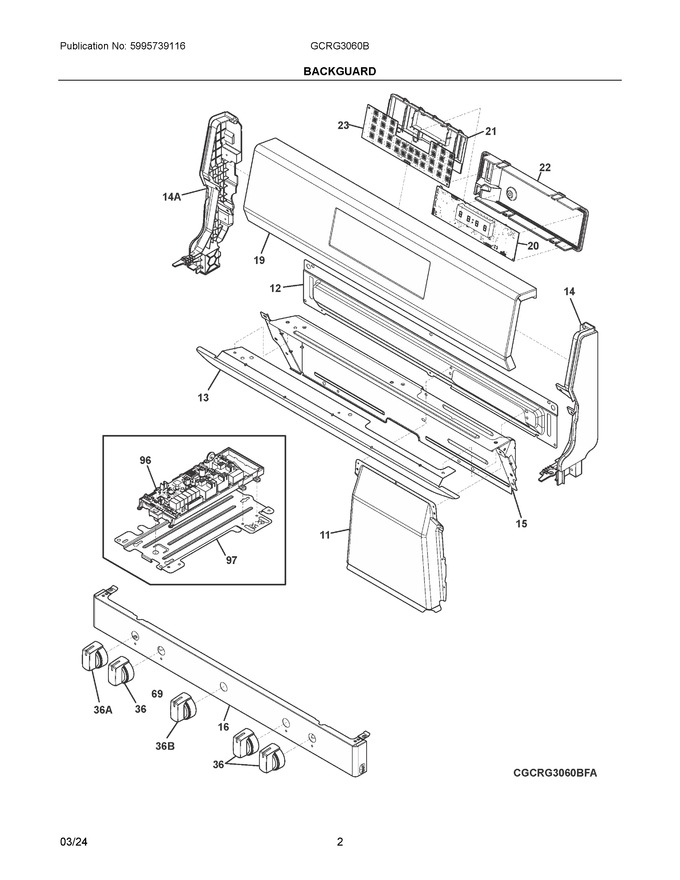

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304528376		Duct, Upper Exhaust, Black				$ 50.56
12	5304528377		Diffuser, Duct				$ 34.18
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 52.71
15	5304528226		Shield, Backguard, Black, Inner				$ 57.06
16	5304528483		Panel, Manifold, Stainless				$ 146.61
19	5304528253		Control Panel, Assembly, Stainless, W/control Brkt			Immediately	$ 124.38
20	5304538607		Controller, Eoc, Ui480   (Replaces: 5304533920)				$ 128.32
21	5304533876		Chassis, Control			Immediately	$ 17.91
22	5304536302		Cover, Control				$ 18.11
23	5304533886		Control, Main Board, Hmi Hector			Immediately	$ 51.84
36	5304536322		Knob, Top Valve, Stainless				$ 39.34
96	140171068053		Pc Board, Ovc Relay   (Replaces: 5304535108)			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 49.21
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304533904		Harness, Wiring, Macs Panel, To Ui Board				$ 15.83
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIA	5304533469		Standoff, Harness, Plastic		Appelez-nous	-
