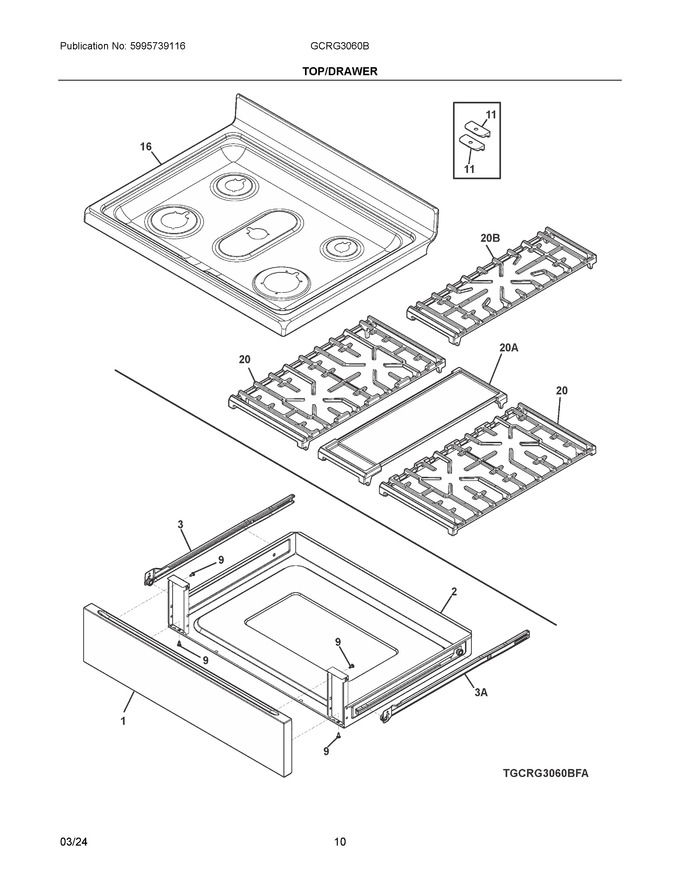

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526303		Panel, Drawer, Ez Care Stnless, Outer				$ 112.31
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304526287		Clip, Alignment, Cooktop		Appelez-nous	-
16	316610078		Main Top, Black				$ 167.48
20	5304536320		Grate, Side, Black				$ 222.52
20A	5304536321		Griddle, Center, Black				$ 222.52
20B	5304535284		Grate, Center, Black, (optional Accessory)			Immediately	$ 83.01
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
