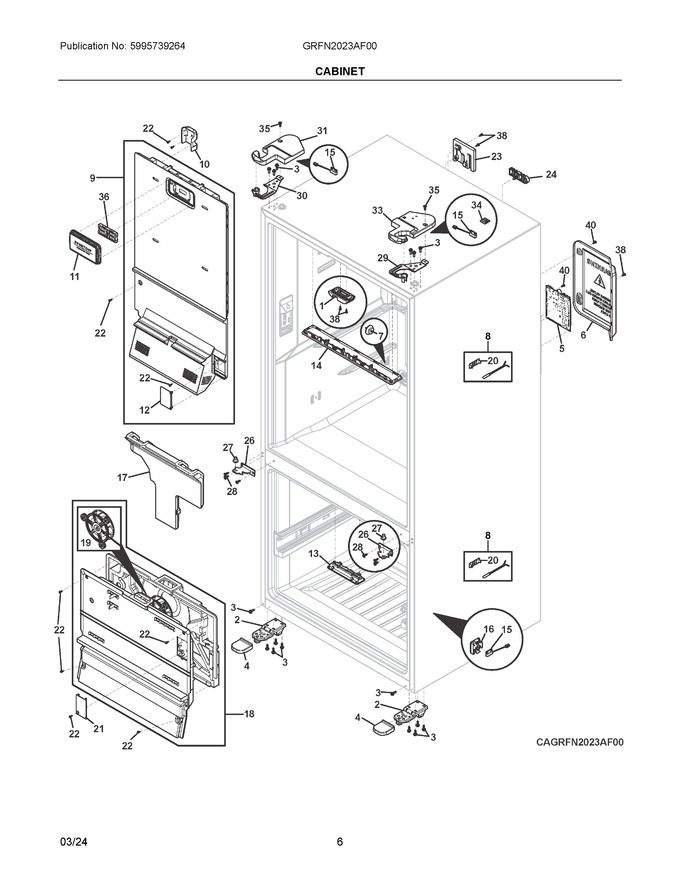

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304534873 | Guide Assembly, Flip Mullion, Base |
|
$ 16.32 | |||||
| 2 | 5304536678 | Foot Assembly, Complete, W/level-roller |
|
$ 60.78 | |||||
| 3 | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.31 | ||||
| 4 | 140206803029 | Cover, Foot Bracket, Lower |
|
$ 3.73 | |||||
| 5 | 973925060713006 | Main Board, Assembly, Erf2507 |
|
Immediately | $ 318.22 | ||||
| 6 | 140194404012 | Cover, Main Control, Rear |
|
$ 15.72 | |||||
| 7 | 241695906 | Screw, 10-16ab X 0.50 |
|
$ 19.13 | |||||
| 8 | 5303918905 | Sensor Kit, Temperature, W/cover |
|
Immediately | $ 32.31 | ||||
| 9 | 5304536925 | Air Tower, Assembly, Service, W/baffle Motor (Replaces: 5304537079) |
|
Immediately | $ 114.82 | ||||
| 10 | 5304536680 | Bracket, Indexing, Air Tower |
|
$ 3.73 | |||||
| 11 | 5304536926 | Cover, Air Filter |
|
$ 17.61 | |||||
| 12 | 5304536927 | Cover, Service, Lower |
|
- | |||||
| 13 | 140188105039 | Led Light, Assembly, Single, W/lens |
|
Immediately | $ 43.83 | ||||
| 14 | 5304536685 | Led Light, Assembly, Fresh Food, Triple Led |
|
Immediately | $ 73.38 | ||||
| 15 | 5304532559 | Switch, Reed, Door (Replaces: 5304529184) |
|
$ 19.57 | |||||
| 16 | 5304519100 | Cover, Reed Switch |
|
$ 7.96 | |||||
| 17 | 5304538331 | Duct Assembly, Return, Fresh Food (Replaces: 5304536928) |
|
- | |||||
| 18 | 5304536929 | Cover Assembly, Evaporator, Freezer, W/motor |
|
Immediately | $ 124.33 | ||||
| 19 | 5304536692 | Fan Assembly, Evaporator |
|
Immediately | $ 101.52 | ||||
| 20 | 5304537119 | Cover, Temp Sensor |
|
- | |||||
| 21 | 5304536693 | Cover, Service Door |
|
$ 4.01 | |||||
| 22 | 5304536681 | Screw, Hilo, M4.2 X 16 |
|
$ 0.35 | |||||
| 23 | 5304536699 | Cover, Hose Housing, Rear |
|
$ 5.41 | |||||
| 24 | 5304536700 | Clamp, Water Tubing |
|
$ 3.57 | |||||
| 26 | 140072822053 | Hinge Assembly, Center |
|
Immediately | $ 23.62 | ||||
| 27 | 5304529178 | Pin, Door Hinge, Center |
|
Immediately | $ 9.86 | ||||
| 28 | 5304536716 | Screw, Thread, M5 X 17mm |
|
$ 0.35 | |||||
| 29 | 5304529182 | Hinge, Door, Rh Top |
|
$ 24.62 | |||||
| 30 | 5304529181 | Hinge, Door, Lh Top |
|
$ 19.72 | |||||
| 31 | 140018267090 | Cover, Top Hinge, Grey, Lh |
|
$ 6.38 | |||||
| 33 | 5304535279 | Cover, Top Hinge, Rh |
|
- | |||||
| 34 | 5304524003 | Pc Board, Ambient, & Humidity |
|
$ 66.38 | |||||
| 35 | 5304519089 | Screw, Self Tapping, M5 X 0.8 |
|
$ 6.07 | |||||
| 36 | FRGPAAF1 | Air Filter, Assembly (Replaces: 5304530334) |
|
Immediately | $ 29.77 | ||||
| 38 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 40 | 5304523032 | Screw, Trilob, M4 X 7.5 |
|
- | |||||
| NIA | 808337901 | Screw, Pf Ab Pfz Pf, 3.5x1.27x19 |
|
$ 3.03 | |||||
| NIA | 5304536708 | Insulator, Hose Housing |
|
$ 3.73 |
