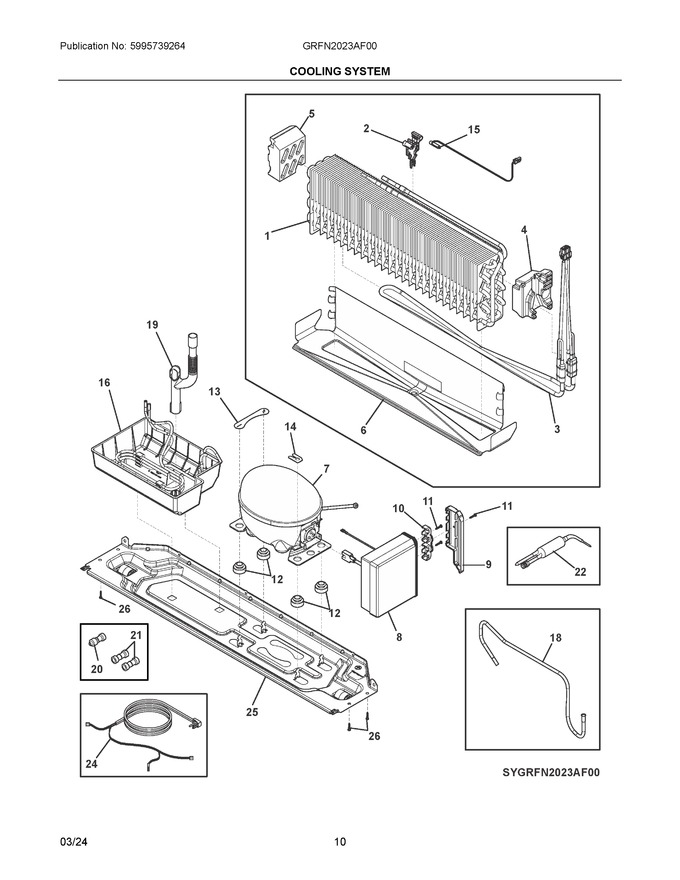

06 - Cooling System


07 - Controls & Water Dispenser


08 - Ice Maker


09 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536686		Evaporator, Assembly			Immediately	$ 141.11
2	5304536687		Clip, Evaporator				$ 2.53
3	5304536688		Heater, Defrost, 2 Pass, Evaporator			Immediately	$ 163.67
4	5304536689		Support, Evaporator, Rh				$ 6.65
5	5304536690		Support, Evaporator, Lh				$ 6.65
6	5304536691		Trough, Heat Shield, Evaporator				$ 49.76
7	5304536694		Compressor, Vtx1113y			Immediately	$ 423.00
8	5304536695		Pc Board, Inverter				$ 252.48
9	5304533517		Cover, Flex Drive, Side, Compressor		Appelez-nous	-
10	5304526793		Clamp, Flex Drive, Cable				$ 9.10
11	5304532654		Screw, Flex Drive, 4*10 Hi Lo		Appelez-nous	-
12	811978901		Grommet, Compressor		Appelez-nous	-
13	5304533505		Clamp, Compressor, 2 Hole		Appelez-nous	-
14	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
15	5303918851		Thermostat Kit, Defrost, W/connectors			Immediately	$ 36.75
16	5304536696		Drain Pan, Assembly, W/heater Tube				$ 46.16
18	5304536697		Tube, Suction, Jumper				$ 28.72
19	5304536698		Tube, Drain				$ 16.62
20	L13000622		Lock Ring, Drier, 3n St 01			Immediately	$ 11.72
21	L13000584		Lock Ring, 4n St 82			Immediately	$ 7.15
22	A19676501		Filter, Drier, Service			Immediately	$ 99.73
24	140123753034		Power Cord, Electric Srvc		Appelez-nous	-
25	5304536679		Base Assembly, Compressor, W/rollers				$ 59.69
26	808199001		Screw, Self Tapping, 6 X 20				$ 7.09
NI	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
NI	811949503		Screw, Truss, 4.2 X 13				$ 3.03
