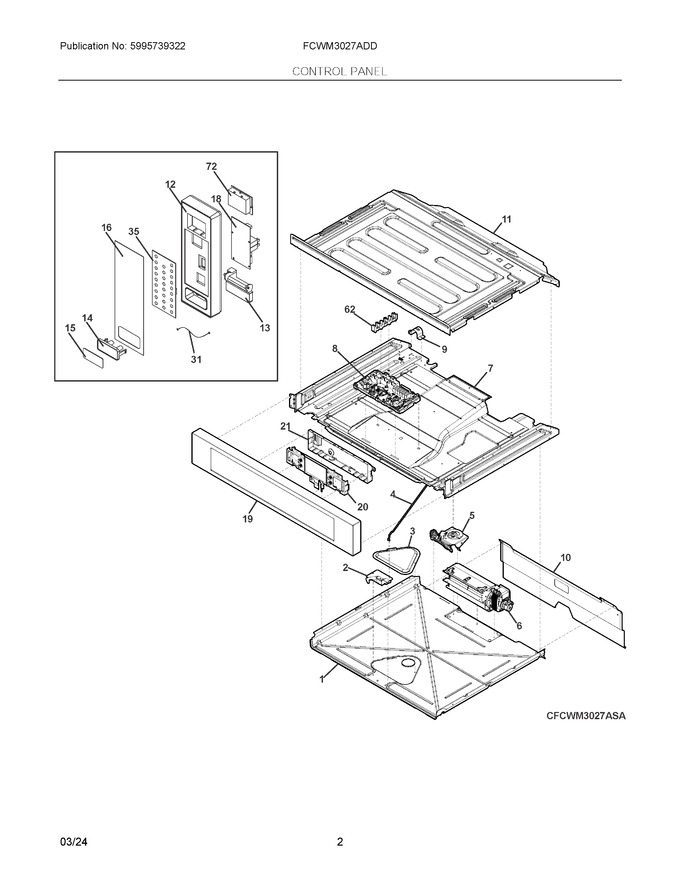

02 - Control Panel
03 - Microwave Oven
04 - Lower Oven
05 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526320 | Shield, Bottom Duct |
|
- | |||||
| 2 | 5304526367 | Latch, Door |
|
$ 15.17 | |||||
| 3 | 5304526366 | Cover, Vent |
|
- | |||||
| 4 | 5304526368 | Rod, Latch |
|
$ 10.62 | |||||
| 5 | 140282916018 | Motor Assembly, Door Latch/lock (Replaces: 5304526552) |
|
- | |||||
| 6 | 140175788037 | Blower Assembly (Replaces: 5304530368) |
|
Immediately | $ 100.37 | ||||
| 7 | 5304526538 | Carrier Plate, Assembly, W/duct |
|
- | |||||
| 8 | 5304536397 | Board-ovc M Wo, 8 # |
|
Immediately | $ 139.97 | ||||
| 9 | 5304530364 | Bracket, Conduit Mtg. |
|
- | |||||
| 10 | 5304530427 | Shield, Insulation, Rear, Upper |
|
- | |||||
| 11 | 5304532474 | Shield, Top Cover |
|
Immediately | $ 116.08 | ||||
| 12 | 5304520027 | Control Panel, Microwave |
|
$ 87.16 | |||||
| 13 | 5304520026 | Lever, Door Opening |
|
$ 17.78 | |||||
| 14 | 5304520028 | Button, Door Opening |
|
- | |||||
| 15 | 5304520025 | Cover, Button, Decorative |
|
- | |||||
| 16 | 5304520029 | Membrane, Touch Pad |
|
$ 123.47 | |||||
| 18 | 5304520031 | Pc Board, Control |
|
$ 241.46 | |||||
| 19 | 5304530367 | Control Panel, Assembly, Steel/glass, Black Stainless |
|
- | |||||
| 20 | 5304537298 | Control-eoc Ui705s E Sc Swo |
|
- | |||||
| 21 | 5304523582 | Housing, Controller |
|
Immediately | $ 34.13 | ||||
| 31 | 5304520032 | Connector |
|
- | |||||
| 35 | 5304520030 | Touch Pad, Pc Board |
|
$ 187.97 | |||||
| 62 | 5304535277 | Terminal Block |
|
Immediately | $ 3.96 | ||||
| 72 | 5304519326 | Pc Board, Display |
|
$ 184.68 | |||||
| NI | 5304535368 | Harness, Conduit Assy., Power Connect (Replaces: 5304525431) |
|
$ 154.45 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 5304526515 | Harness, Wiring, Main |
|
$ 145.15 | |||||
| NI | 5304532099 | Harness, Wiring, Wall Oven, Macs |
|
$ 22.45 | |||||
| NI | 5304532105 | Harness, Wiring, Upper Oven, Ds |
|
$ 19.51 | |||||
| NIA | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIA | 387872717 | Screw, M4, 2 X 10, Black, W/washer |
|
- | |||||
| NIB | 5304528293 | Screw, T20, 8-18 X .79 |
|
- | |||||
| NIC | 316001017 | Screw, Grounding, 10-24 X 1.835, Green |
|
$ 3.03 |
