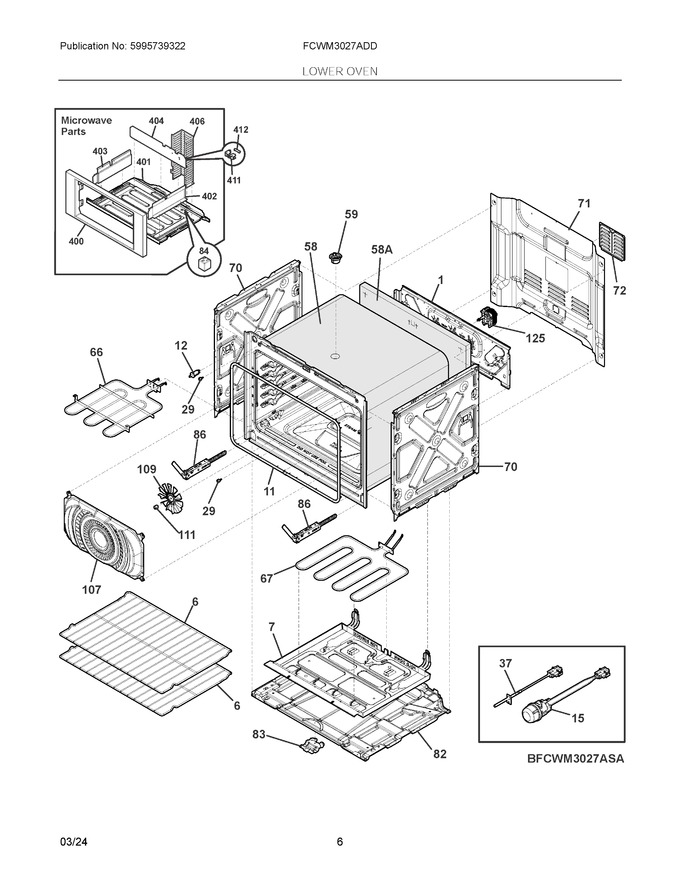

03 - Microwave Oven


04 - Lower Oven


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526336		Panel, Rear		Appelez-nous	-
6	5304531722		Rack, Oven, Wire, Flat   (Replaces: 5304526378)			Immediately	$ 51.05
7	5304528326		Tray, Hidden Bake				$ 52.33
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 144.09
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304533411		Lamp Assembly, Halogen, G9, 40w, 120v   (Replaces: 5304530343)			Immediately	$ 36.50
29	316517600		Bumper, Front, Main				$ 12.05
37	5304526310		Probe, Oven Sensor			Immediately	$ 43.17
58	140293845016		Insulation, Oven, Wrapper   (Replaces: 5304530429)		Appelez-nous	-
59	140169214032		Tube, Vent Catalyst   (Replaces: 5304526450)		Appelez-nous	-
66	5304536847		Element, Broil, 6 Pass, 4000w, 240v   (Replaces: 5304526370)			Immediately	$ 71.42
67	5304535245		Asm-hidden Bake System, 67 #		Appelez-nous	-
70	5304526314		Panel, Side, Exterior				$ 70.83
71	5304526329		Shield, Rear Wire				$ 78.87
72	5304526588		Cover, Convection Mtr				$ 17.01
82	5304536537		Plate-ext Bottom Sc Wo Raw				$ 33.81
83	5304530453		Bracket, Base Panel, Mount				$ 8.42
84	5304527954		Outlet Assembly, Electrical, W/harness		Appelez-nous	-
86	5304526280		Hinge, Door, Pink, 2 Spring			Immediately	$ 58.39
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 14.41
111	561231207		Nut, Fan Blade			Immediately	$ 18.35
125	5304526375		Motor, Convection Fan				$ 163.80
400	5304530372		Trim Assembly, Microwave, Black Stainless, Front		Appelez-nous	-
401	5304532474		Shield, Top Cover			Immediately	$ 116.08
402	5304527950		Support, Side, Rh		Appelez-nous	-
403	5304527951		Support, Side, Lh		Appelez-nous	-
404	5304527952		Support, Back		Appelez-nous	-
406	5304527953		Cover, Cable Guard		Appelez-nous	-
412	318647300		Fuse Holder, Assembly, 412 #, 20a, W/fuse			Immediately	$ 217.73
411A	5304535246		Bracket-fuse Holder, 411 #		Appelez-nous	-
58A	5304530428		Insulation, Oven, Rear				$ 19.19
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NI	5304530471		Screw, Self Drill, D3.5 X 10, Zinc, *		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304530450		Anti Tip, Kit				$ 37.76
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526498		Harness, Wiring, Ovc To Hall Eff, Temp Probe, Mdl		Appelez-nous	-
NI	5304526515		Harness, Wiring, Main				$ 145.15
NI	387872810		Screw, Sheet Metal, 4.2 X 10		Appelez-nous	-
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 22.45
NI	5304533451		Harness, Wiring, Tach-mdl-temp				$ 65.06
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIA	5304535247		Harness-power Supply Mc, 84 #		Appelez-nous	-
