SELECT A DIAGRAM

01 - Cover Sheet

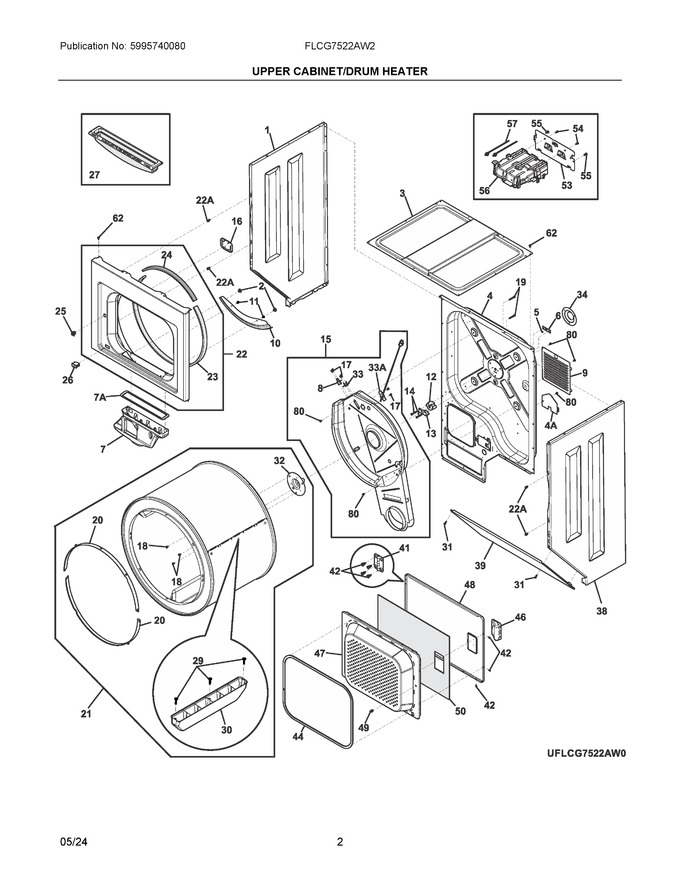

02 - Upper Cabinet/drum Heater


03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137510410		Panel, Left Side, White				$ 231.62
2	131362400		Fastener, Push-in				$ 9.41
3	131883301		Panel, Top				$ 276.98
4	5304523179		Panel, Rear, Lc Dryer		Appelez-nous	-
5	5303281019		Ball, Grounding				$ 16.30
6	5303281020		Clip, Ball, Steel, Flat Nut				$ 17.01
7	5304523177		Duct Assembly, Air, W/foam Seal			Immediately	$ 85.30
8	137032600		Limiter, Thermal, Heater			Immediately	$ 22.00
9	5303309490		Panel, Motor Access		Appelez-nous	-
10	137539100		Shield, Air Duct				$ 46.78
11	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
12	131825900		Bearing, Drum Support			Immediately	$ 10.97
13	131724301		Bracket, Bearing Support			Immediately	$ 25.66
14	131205400		Screw, Bracket Mtg., 10-16b X 1.375, Cr/sq Drive				$ 12.76
15	5304524474		Heater, W/housing, Duct		Appelez-nous	-
16	137576600		Plug, Light Hole			Immediately	$ 14.18
17	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
18	5304502598		Screw, Thread Cutting, #10-32 X .75			Immediately	$ 9.41
20	137513300		Glide, Flat, Dryer			Immediately	$ 36.68
21	5304517316		Drum Assembly, Dryer, W/glides-vanes				$ 359.30
22	5304517315		Panel, Front Weld, White, W/felt Seals				$ 242.13
23	5303937183		Seal, Felt, Lower   (Replaces: 134134700)			Immediately	$ 35.87
24	5303937182		Seal, Felt, Upper   (Replaces: 134036400)			Immediately	$ 26.89
25	131658800		Door Catch, White, Upper			Immediately	$ 68.38
26	134813663		Switch, Door, White			Immediately	$ 60.78
27	5304516871		Lint Filter, Trap, White			Immediately	$ 35.83
29	131382300		Screw, Quadrex Head, 10-14 X 1.00, Vane Mtg., Special			Immediately	$ 13.46
30	5304515811		Vane, Dryer, White			Immediately	$ 28.20
31	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
32	131777700		Shaft, Drum Support, Ballhitch   (Replaces: 137088600)			Immediately	$ 71.87
33	5304406099		Thermostat, Safety			Immediately	$ 120.58
34	5304506372		Cover Plate, Bearing				$ 53.76
38	137510510		Panel, Right Side, White				$ 233.08
39	137546910		Panel, Access, White				$ 184.19
41	134222900		Hinge, Dryer Door				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Quad Drive			Immediately	$ 14.89
44	137551901		Gasket, Door			Immediately	$ 41.00
46	131789400		Handle, Door, White			Immediately	$ 63.79
47	137365110		Panel, Inner Door, White				$ 229.64
48	137408403		Panel, Outer Door, White			Immediately	$ 194.20
49	5303207102		Strike, Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	134535300		Insulator, Heat Shield, Outer Door				$ 60.25
53	5304515761		Cover, Main Board, External				$ 48.39
54	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
55	137511100		Screw, Hex Head, 10-24 X 0.500, Type F				$ 12.05
56	5304524466		Board, Main Control, W/housing		Appelez-nous	-
57	5304515894		Clip, Fir Tree Style				$ 17.35
62	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
22A	137362600		Pin, Panel Locator				$ 35.44
33A	5304524473		Thermostat		Appelez-nous	-
4A	137389801		Cover, Terminal Block		Appelez-nous	-
7A	131295200		Seal, Air Duct				$ 16.30
NIA	5304505258		Harness, Wiring, Door Switch				$ 44.39
NIA	5304520336		Wiring Harness, Washgroup, Lower			Immediately	$ 146.03
NIB	5304523160		Wiring Harness, Main, Washer				$ 98.08

    View Diagram in Separate Window       Print Part List
