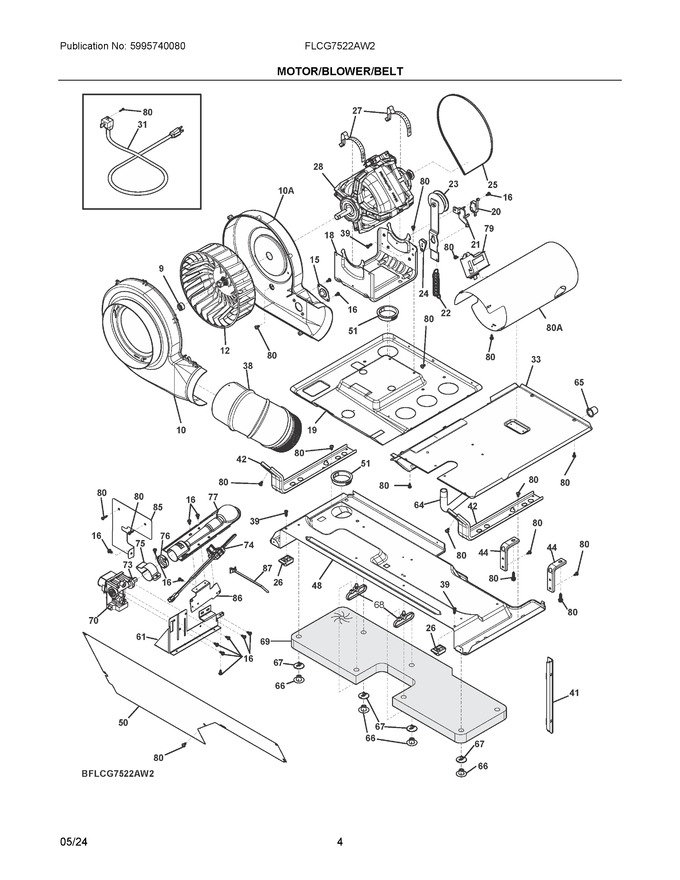

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304488479		Clamp			Immediately	$ 32.09
10	5304523176		Housing Assembly, Blower, Front, W/adaptor			Immediately	$ 73.02
12	131476300		Blower Wheel			Immediately	$ 47.00
15	134587700		Thermistor, Control			Immediately	$ 56.39
16	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
18	131367101		Cradle, Motor Mount, Plastic Spacer		Appelez-nous	-
19	137490900		Pan, Upper Lc, Dryer, Formed		Appelez-nous	-
20	5304521496		Limit Switch, Dryer Belt				$ 22.42
21	5304521495		Bracket, Limit Switch, Dryer Belt				$ 10.85
22	3205241		Spring, Idler				$ 75.83
23	5304526204		Idler Arm Assy, W/pulley & Clip			Immediately	$ 51.34
24	5304524456		Spacer, Idler Adaptor				$ 36.87
25	137292700		Belt, Dryer, Lc			Immediately	$ 9.34
26	137511300		Block, Support		Appelez-nous	-
27	134242400		Clamp, Motor Mtg.			Immediately	$ 35.76
28	134196602		Motor, Dryer Drive, With Pulley			Immediately	$ 252.08
31	134500500		Power Cord, Electric Svce				$ 43.24
33	5304515828		Baffle, Assembly, W/felt Seal		Appelez-nous	-
38	5304521383		Elbow, Exhaust Duct				$ 45.36
39	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
41	131091300		Bracket, Support, Side		Appelez-nous	-
42	137304710		Bracket, Marriage, Dryer		Appelez-nous	-
44	3204326		Bracket, L Mounting, Cabinet Rear, External				$ 43.24
48	137329111		Pan, Bottom Lc Dryer		Appelez-nous	-
50	5304524542		Cover Lc Dryer, Support		Appelez-nous	-
51	131453000		Bushing, Snap-in				$ 10.63
61	5304524468		Bracket, Gas Valve, Mtg		Appelez-nous	-
64	140295139012		Pipe, Gas   (Replaces: 137076300)				$ 43.24
65	08015112		Cap, Pipe		Appelez-nous	-
66	5304524483		Clip Rivet, Female		Appelez-nous	-
67	5304524484		Clip Rivet, Male		Appelez-nous	-
68	5304524498		Zip Tie, (2)		Appelez-nous	-
69	5304524477		Sound Insulator, Pack, Top		Appelez-nous	-
70	5304524455		Valve, Gas				$ 260.98
73	5303211036		Orifice, Natural Gas, Size 44		Appelez-nous	-
74	137524000		Igniter, Assembly			Immediately	$ 166.55
75	134258500		Shutter, Air				$ 31.90
76	134714401		Collar, Alignment, Gas Valve				$ 11.57
77	134197700		Burner, Gas				$ 64.49
79	5303281135		Sensor, Radiant			Immediately	$ 102.06
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
85	134287301		Shield, Heat		Appelez-nous	-
86	A03203901		Bracket, Ignitor		Appelez-nous	-
87	5304528020		Cable Tie, Push Mount, 5.20 Inch   (Replaces: 131964400)				$ 9.41
10A	137551800		Housing, Blower, Rear			Immediately	$ 107.00
77A	134197701		Burner, Gas				$ 44.82
80A	131712405		Tube, Burner				$ 34.70
NI	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
NI	5304523143		Lp Conversion Kit, 17k				$ 122.76
NIA	5304524443		Wiring Harness, Gas, Main		Appelez-nous	-
NIA	137212300		Gasket, 152 X 13 X 3 Mm		Appelez-nous	-
