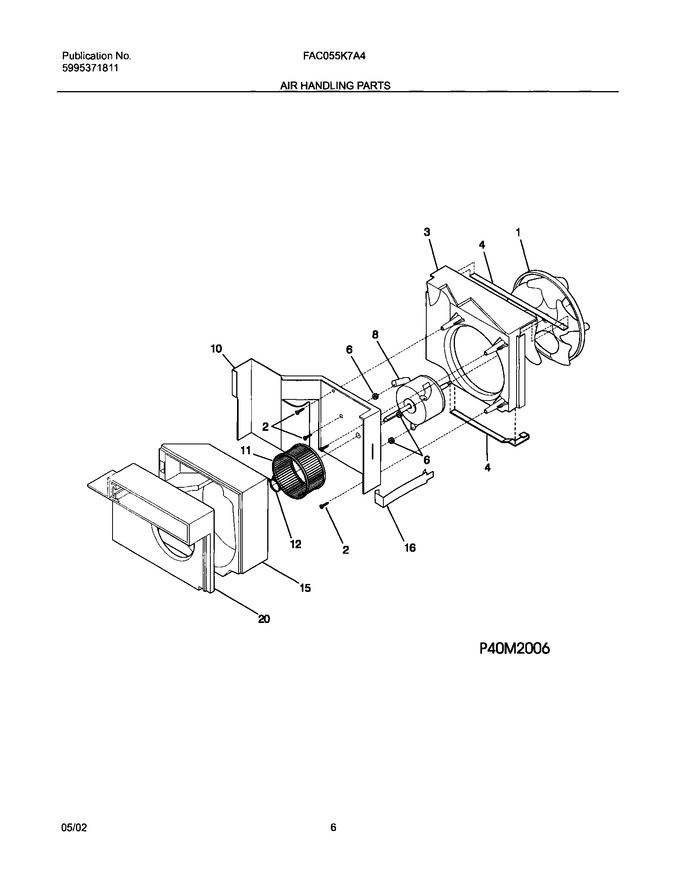

07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw,10-16ab X 0.72 ,square Drive		Appelez-nous	-
3	309643901		Housing-fan,shroud		Appelez-nous	-
4	5303303759		Seal,bottom		Appelez-nous	-
4	5304421913		Seal,top		Appelez-nous	-
6	08007481		Nut				$ 5.81
10	309643702		Bulkhead		Appelez-nous	-
12	327161302		Clamp,blower Wheel Mt ,compression		Appelez-nous	-
15	309642901		Housing,blower Scroll ,extended		Appelez-nous	-
16	309100201		Clip,evap/bulkhead		Appelez-nous	-
20	309643004		Plate,housing/scroll		Appelez-nous	-
F1	309646202		Fan Blade,with Clamp		Appelez-nous	-
F11	309643302		Blower Wheel,8mm Hub		Appelez-nous	-
F8	309645002		Motor-fan		Appelez-nous	-
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
