SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts

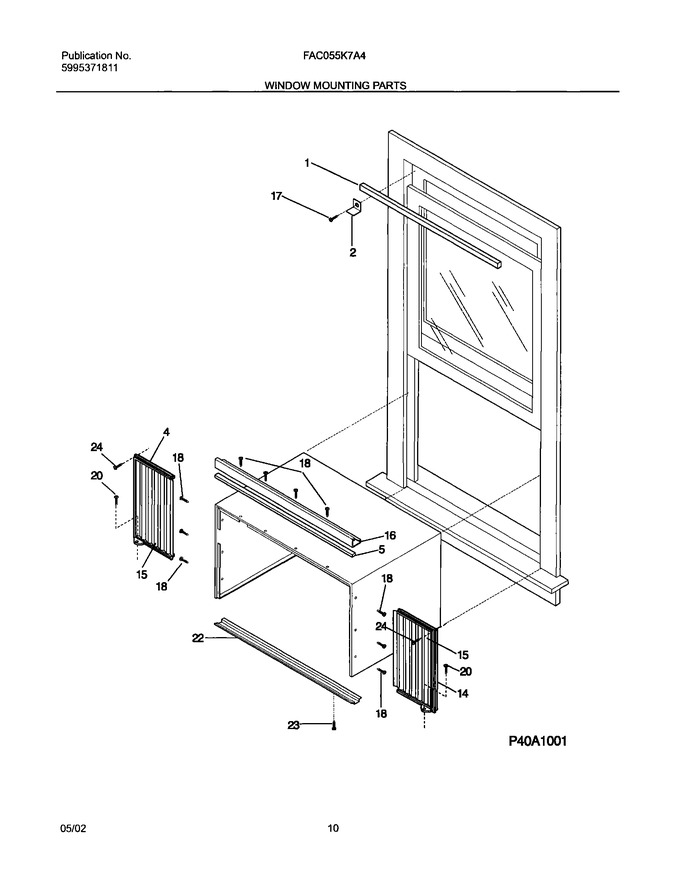

11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal,window Stuffer		Appelez-nous	-
2	5303211056		Bracket-sash Lock		Appelez-nous	-
4	309644901		Frame Extension Kit,accordian ,lh & Rh ,includes 4 & 14		Appelez-nous	-
5	08016226		Seal,top Rail/cab		Appelez-nous	-
14	5304414121		Frame,cab Extension ,rh		Appelez-nous	-
15	309626504		Closure,accordian Type ,window Mount		Appelez-nous	-
16	5304417362		Rail,retainer ,top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
20	5304411997		Screw,8-18 X 0.750				$ 2.37
22	5304403252		Rail,retainer ,bottom		Appelez-nous	-
23	3001806		Screw,23(t) ,10-32 X 0.310		Appelez-nous	-
24	5308002974		Screw,wood, Type 17 ,8-15 X 0.500		Appelez-nous	-
NI	5304413848		Frame,rh ,w/o Accordian		Appelez-nous	-
NI	5304413847		Extension-frame,lh ,w/o Accordian		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
