01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

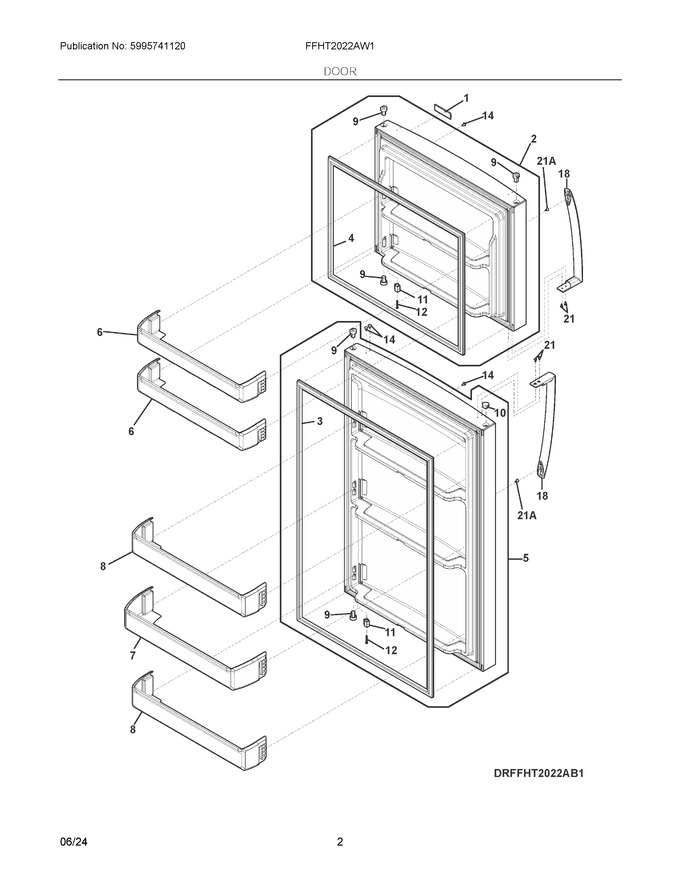

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511144 | Badge, Frigidaire, White |
|
Immediately | $ 4.55 | ||||
| 2 | 5304539441 | Door Assembly, Freezer, White (Replaces: 5304536271) |
|
Immediately | $ 248.91 | ||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 205.12 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 180.01 | ||||
| 5 | 5304539439 | Door Assembly, Fresh Food, White (Replaces: 5304536270) |
|
$ 317.75 | |||||
| 6 | 5304519702 | Bin, Door, White, Freezer |
|
Immediately | $ 50.63 | ||||
| 7 | 5304522123 | Bin, Door, 6", White, Refrigerator |
|
Immediately | $ 70.75 | ||||
| 8 | 5304519703 | Bin, Door, 4", White, Refrigerator |
|
Immediately | $ 22.42 | ||||
| 9 | 5304519757 | Bearing, Hinge, White |
|
Immediately | $ 7.30 | ||||
| 10 | 5304519747 | Cover, Hinge Bearing, White |
|
$ 2.98 | |||||
| 11 | 5304536276 | Hook, Auto Closer, White |
|
Immediately | $ 3.77 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 14 | 240494001 | Button, Plug, White |
|
Immediately | $ 18.20 | ||||
| 18 | 5303918823 | Handle, Door, White, W/block & Screw (Replaces: 5304511147) |
|
Immediately | $ 52.33 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 |
