SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

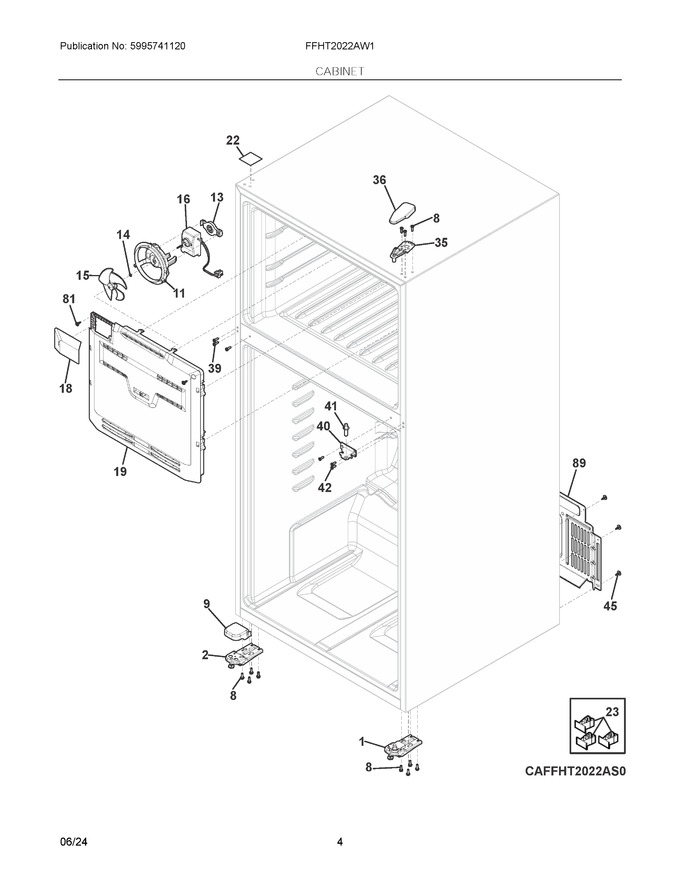

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526772		Hinge Assembly, Bottom, White, Rh, W/pin-closer			Immediately	$ 45.50
2	5304519776		Hinge Assembly, Bottom, Lh			Immediately	$ 25.79
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.08
9	5304519777		Cover, Hinge, White, Lower, Non Hinged				$ 5.07
11	5304519752		Shroud, Evaporator Fan			Immediately	$ 21.23
13	242287501		Grommet, Evaporator Fan, Rear			Immediately	$ 17.72
14	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
15	242219302		Fan Blade, Evaporator			Immediately	$ 17.44
16	242219206		Motor, Evaporator Fan, Blower   (Replaces: 5304530651)			Immediately	$ 161.62
18	5304519662		Cover, I/m Connector			Immediately	$ 5.96
19	5304519654		Cover Assembly, Evaporator, W/frz Slide			Immediately	$ 127.76
22	5304523313		Label, Blank, White, Hole Cover			Immediately	$ 3.55
23	5304523302		Clip, Wiring Harness		Appelez-nous	-
35	5304519646		Hinge, Door, Upper			Immediately	$ 8.34
36	5304530010		Cover, Upper Hinge, White			Immediately	$ 6.95
39	5304519797		Screw, Pan Hd Qdrx Tri, M5 X 12, Chrome				$ 3.08
40	5304539155		Hinge, Door, White, Center   (Replaces: 5304519647)		Appelez-nous	-
41	5304519642		Pin, Center Hinge, Door			Immediately	$ 5.31
42	5304522279		Screw-flt Hd M5x16 Qdrx   (Replaces: 5304537117)			Immediately	$ 3.08
45	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
89	5304522114		Access Cover, Rear				$ 34.25
NIA	5304524219		Spacer, Center Hinge, Clear			Immediately	$ 6.82
