View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

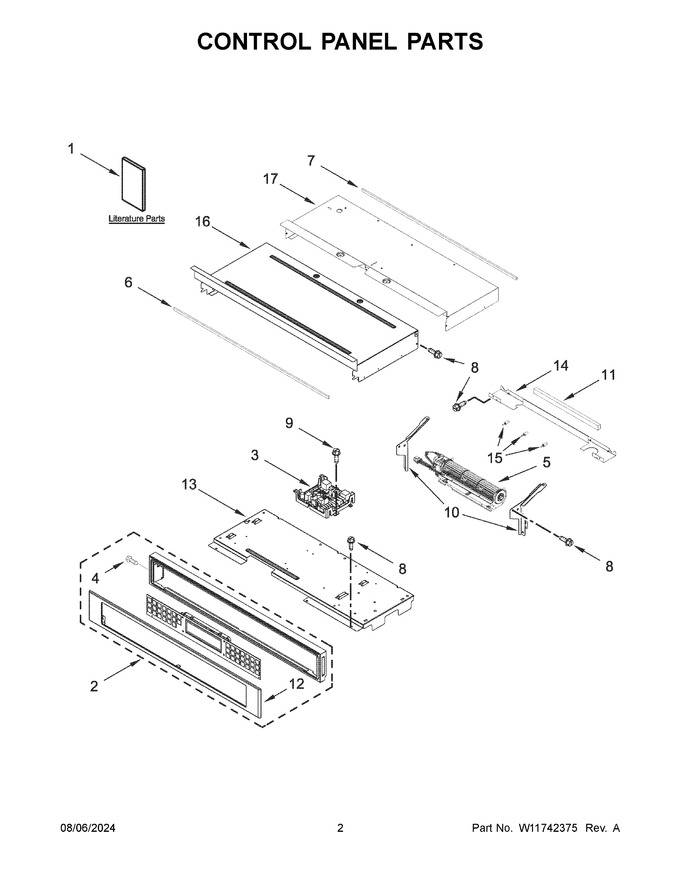

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11656312 | Owner's Manual |
|
- | |||||
| 2 | W11666473 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11640534) |
|
Immediately | $ 901.63 | ||||
| 3 | W11448962 | Appliance Manager, Copernicus (upper) (Replaces: W11249218) |
|
Immediately | $ 292.92 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 12.62 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 332.78 | ||||
| 6 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 7 | W10728475 | Gasket, Rubber |
|
$ 32.68 | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | 7101P43460 | Screw |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 12 | W10588740 | Skin, Control Panel (stainless) |
|
$ 183.47 | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 18.96 | |||||
| 16 | W11821591 | Cover, 30 In Chassis Top Front (Replaces: W11244445) |
|
- | |||||
| 17 | W11223325 | Cover, 30 In Chassis Top Back |
|
$ 73.52 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11618058 | Quick Start Guide |
|
- | |||||
| 1B | W11479717 | Wiring Diagram |
|
- | |||||
| 1C | W11340883 | Tech Manual |
|
- | |||||
| 3A | W11598200 | Appliance Manager, Copernicus (without Power Supply) (lower) (Replaces: W11249217) |
|
Immediately | $ 313.61 | ||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 28.24 | ||||
| NI | W11245674 | Harness, Main |
|
Immediately | $ 344.09 | ||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 52.97 | |||||
| NI | W11233570 | Harness, Console |
|
Immediately | $ 201.14 | ||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 20.12 | |||||
| NI | W11788676 | Harness, Signal (Replaces: W11256625) |
|
Immediately | $ 207.71 | ||||
| NI | W10655464 | Bracket, Harness |
|
$ 34.89 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 18.35 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 11.55 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 |
