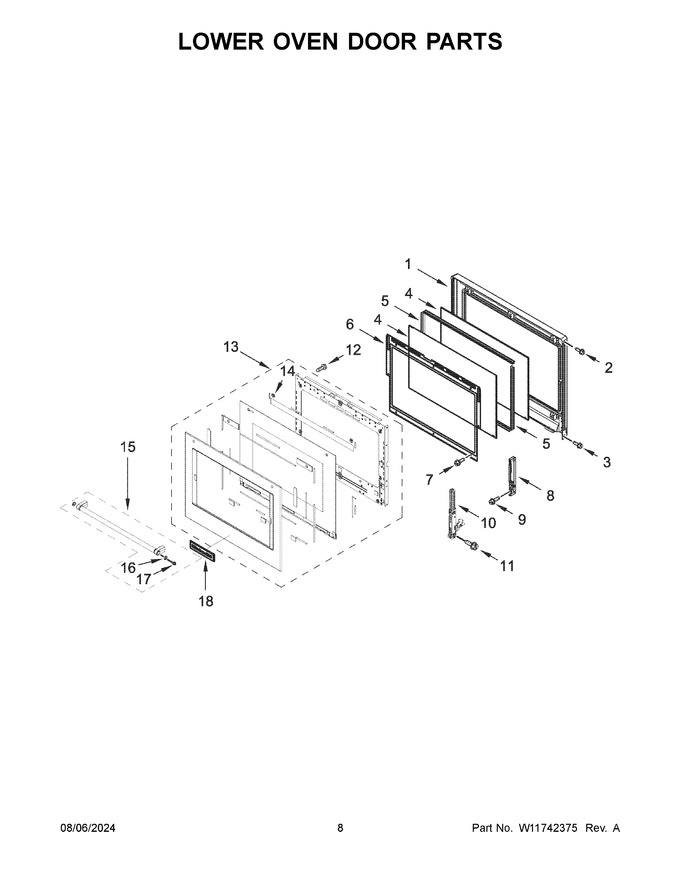

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11302587) |
|
Immediately | $ 260.41 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 12.66 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 212.32 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11647160) |
|
Immediately | $ 61.79 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 69.89 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11712405 | Receiver, Hinge (left) (Replaces: W11239070) |
|
Immediately | $ 73.36 | ||||
| 9 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 7.30 | |||||
| 10 | W11700313 | Hinge, Door (left) (Replaces: W11296036) |
|
Immediately | $ 98.47 | ||||
| 11 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 6.98 | ||||
| 12 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 12.65 | ||||
| 13 | W11600222 | Door Assembly (stainless) (Replaces: W11295957) |
|
Immediately | $ 767.96 | ||||
| 14 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 12.69 | ||||
| 15 | W11518518 | Handle Assembly (stainless) (Replaces: W11241572) |
|
$ 198.64 | |||||
| 16 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 19.84 | ||||
| 17 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 7.19 | ||||
| 18 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 10A | W11699927 | Hinge, Door (right) (Replaces: W11296037) |
|
Immediately | $ 98.47 | ||||
| 8A | W11712406 | Receiver, Hinge (right) (Replaces: W11239072) |
|
$ 73.31 |
