View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front & Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

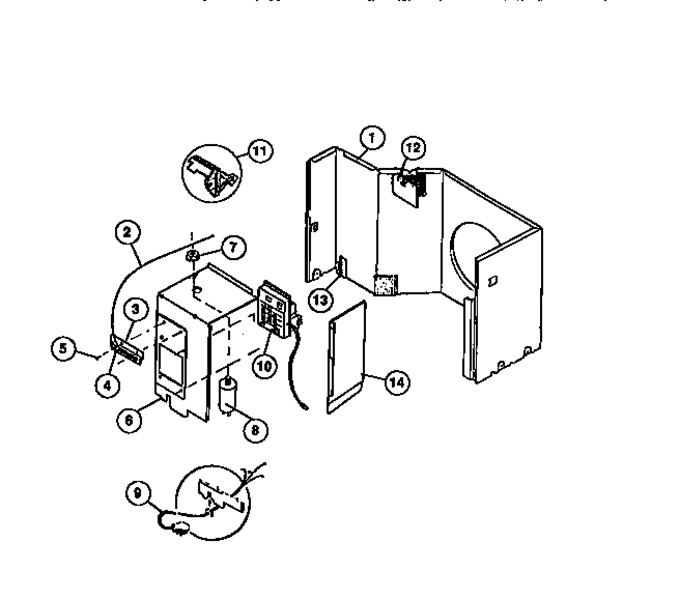

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303284647 | Bulkhead |
|
- | |||||
| 2 | 5303276672 | Cable-vent Door |
|
- | |||||
| 3 | 5303202999 | Retainer |
|
- | |||||
| 4 | 5303270351 | Arm |
|
- | |||||
| 5 | 3015312 | Screw |
|
- | |||||
| 6 | 5303286404 | Panel, Control |
|
- | |||||
| 7 | 5303270092 | Nut-capacitor |
|
- | |||||
| 8 | 5303270059 | Capacitor 25-10/370 |
|
- | |||||
| 9 | 5303270058 | Power Cord |
|
- | |||||
| 10 | 5303282685 | Control, Electronic |
|
- | |||||
| 11 | 08017123 | Holder - Thermistor |
|
- | |||||
| 12 | 3204944 | Vent Door |
|
- | |||||
| 13 | 5303286405 | Harness |
|
- | |||||
| 14 | 5303270159 | Divider |
|
- | |||||
| 14 | 5303282687 | Screw, Control Panel (ni) |
|
- |
