01 - Cover
02 - Cabinet Front & Wrapper
03 - Control Parts

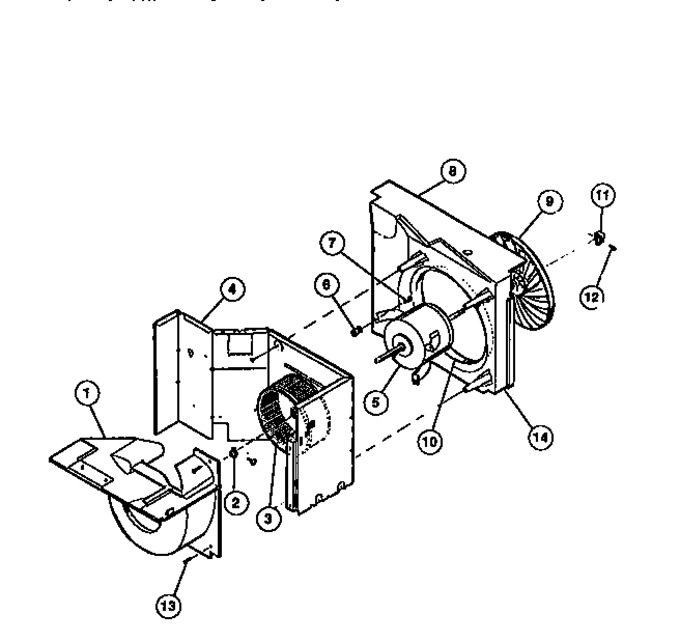

04 - Air Handling Parts
05 - Compressor
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270044 | Scroll Evap |
|
- | |||||
| 2 | 5303012110 | Clamp |
|
$ 8.14 | |||||
| 3 | 5303211025 | Blower Wheel |
|
- | |||||
| 4 | 5303284647 | Bulkhead |
|
- | |||||
| 5 | 5303270035 | Motor Fan |
|
- | |||||
| 7 | 5303270036 | Screw |
|
- | |||||
| 8 | 5303270041 | Shroud Condenser |
|
- | |||||
| 9 | 5303270893 | Fan Blade |
|
$ 132.46 | |||||
| 10 | 3202810 | Deflector Condensate |
|
- | |||||
| 11 | 5308011040 | Clamp |
|
- | |||||
| 12 | 5308007473 | Screw-clamp |
|
- | |||||
| 13 | 3202975 | Screw Scroll |
|
- | |||||
| 14 | 5303270043 | Seal-shroud Btm |
|
- |
