01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

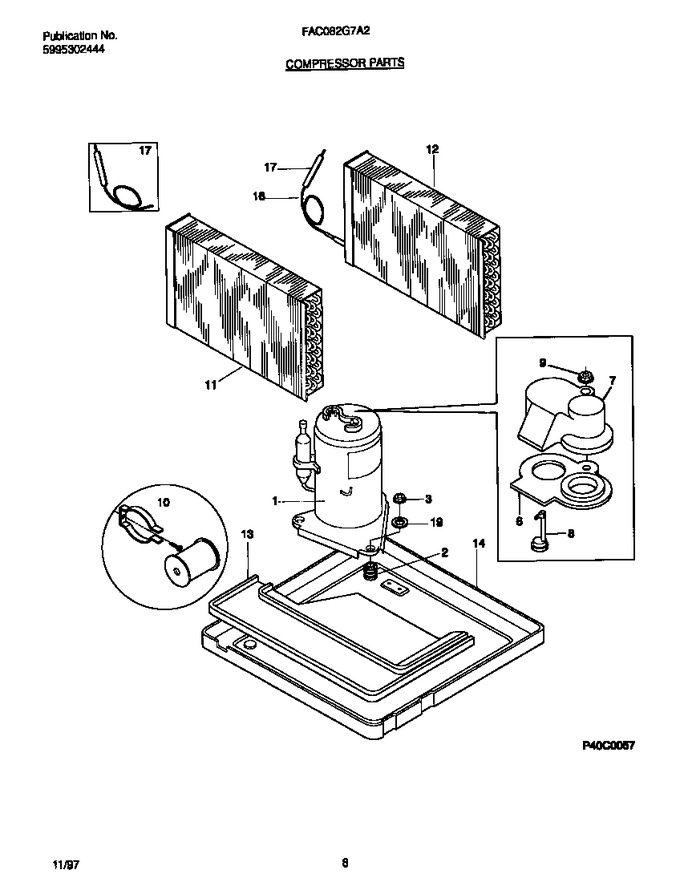

| 1 | 309616906 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut, Compressor, (3) |
|
- | |||||
| 6 | 3201668 | Gasket-cover |
|
- | |||||
| 7 | 3201669 | Cover-terminal |
|
- | |||||
| 8 | 5304402840 | Overload Protector |
|
- | |||||
| 9 | 3201670 | Nut-cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 309604213 | Evaporator |
|
- | |||||
| 12 | 5304402846 | Condenser |
|
- | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5303302847 | Base Plate, Compressor |
|
- | |||||
| 16 | 3203179 | Capillary Tube, Cut To 35`` |
|
- | |||||
| 17 | 309325202 | Drier-filter |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- |
