SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

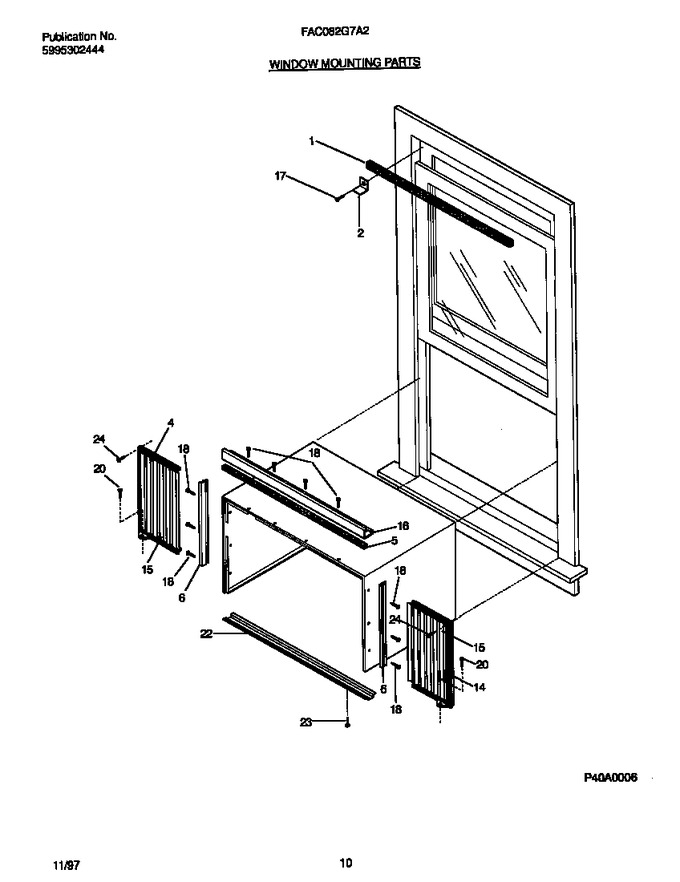

1	3002603		Seal, Frame, Top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
4	5303311127		Frame,lh		Appelez-nous	-
5	08016226		Seal		Appelez-nous	-
6	5303303795		Retainer-accordian		Appelez-nous	-
7	3015312		Screw, 8-18 X 0.47		Appelez-nous	-
14	5303311128		Frame,rh		Appelez-nous	-
15	5303270075		Accordian		Appelez-nous	-
16	5303302859		Retainer, Top		Appelez-nous	-
17	3002803		Screw-wood		Appelez-nous	-
18	5303303691		Screw, 8-18ab X 0.38		Appelez-nous	-
20	5303295750		Screw, 8-18 X 0.750		Appelez-nous	-
22	5303302857		Retainer, Bottom		Appelez-nous	-
23	3001806		Screw		Appelez-nous	-
24	5308002974		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
