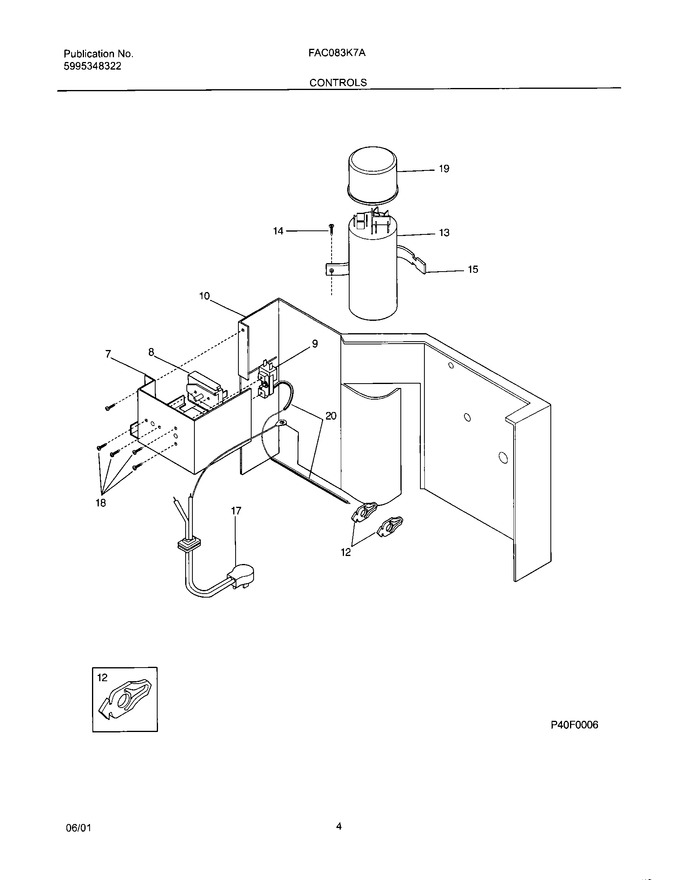

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309350302 | Control Box |
|
- | |||||
| 8 | 5303323284 | Switch-selector |
|
- | |||||
| 9 | 5304402838 | Control-temperature |
|
- | |||||
| 10 | 309602404 | Bulkhead |
|
- | |||||
| 12 | 309101202 | Clip-control Bulb, (2) |
|
- | |||||
| 13 | 5303303576 | Capacitor, 370 V, 10+35 Mfd |
|
- | |||||
| 14 | 5303303691 | Screw,truss Head `8-18ab X 0.375 ,w/nibs |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 17 | 309343101 | Cord-electric Power,18 Awg ,115 V |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- | |||||
| NI | 309111201 | Grommet,wire Protector |
|
- |
