Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304406829 Compressor,san 806-551-42 Special Order $ 620.31

2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 3200282 Gasket-cover Appelez-nous -
7 3200281 Cover-terminal Appelez-nous -
8 3202920 Overload Protector Appelez-nous -
9 5303211017 Nut,terminal Cover Appelez-nous -
10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

11 309619305 Evaporator Appelez-nous -
12 5303303195 Condenser Appelez-nous -
13 5303302849 Tray-evaporator Appelez-nous -
14 5304413932 Base Plate,compressor Mtg Appelez-nous -
16 3203179 Capillary Tube,55 Inch Long ,cut-to-length Appelez-nous -
17 5304413933 Tube-process,condenser Appelez-nous -
19 309112501 Washer,metallic Appelez-nous -
NI 5303002664 Washer,compressor Mtg Appelez-nous -

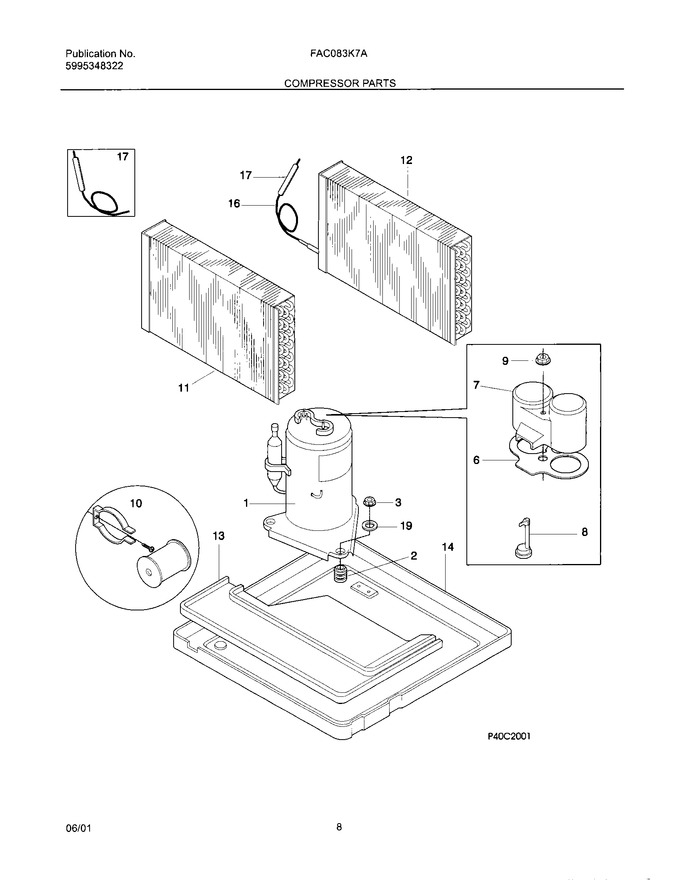

    View Diagram in Separate Window     Print Icon   Print Part List
