SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front And Wrapper

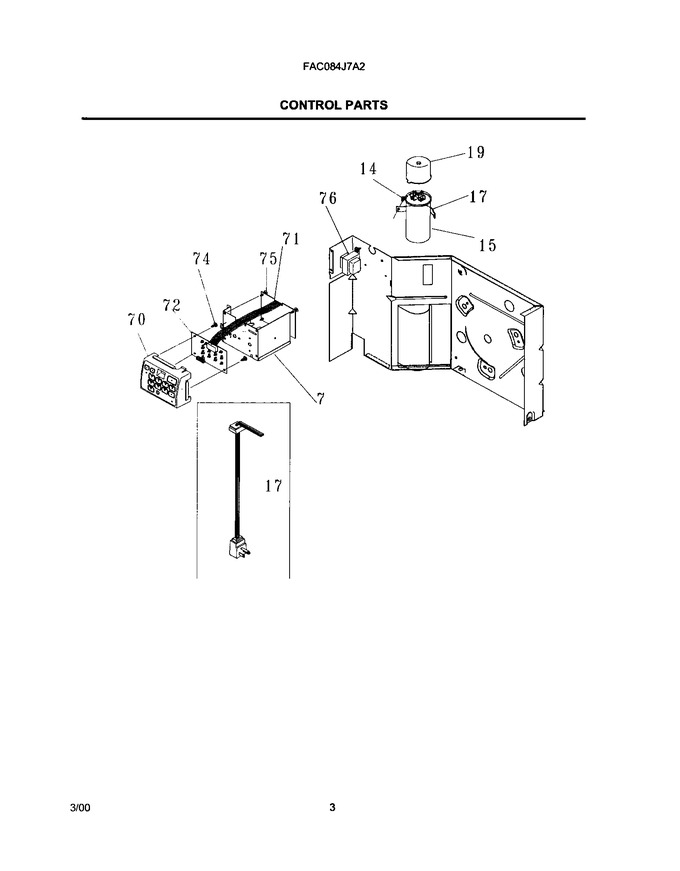

05 - Control Parts


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309350301		No.control Box		Appelez-nous	-
10	309602403		Bulkhead		Appelez-nous	-
12	5304413782		Holder-thermistor,assy With Seal		Appelez-nous	-
15	5303303086		Strap-capacitor		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
19	5303302855		Cover-capacitor		Appelez-nous	-
71	309350401		Power Board		Appelez-nous	-
72	309350402		Pc Board,input		Appelez-nous	-
74	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
17No.	309343101		Cord-service		Appelez-nous	-
F13	5303303576		Capacitor, 370 V, 10+35 Mfd		Appelez-nous	-
F76	309111601		Transformer,120/12 Volt		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	5304414108		Holder-thermistor,without Seal		Appelez-nous	-
NI	309341601		Diagram-wiring		Appelez-nous	-
NI	5304417643		Ribbon Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
