New Model Search:

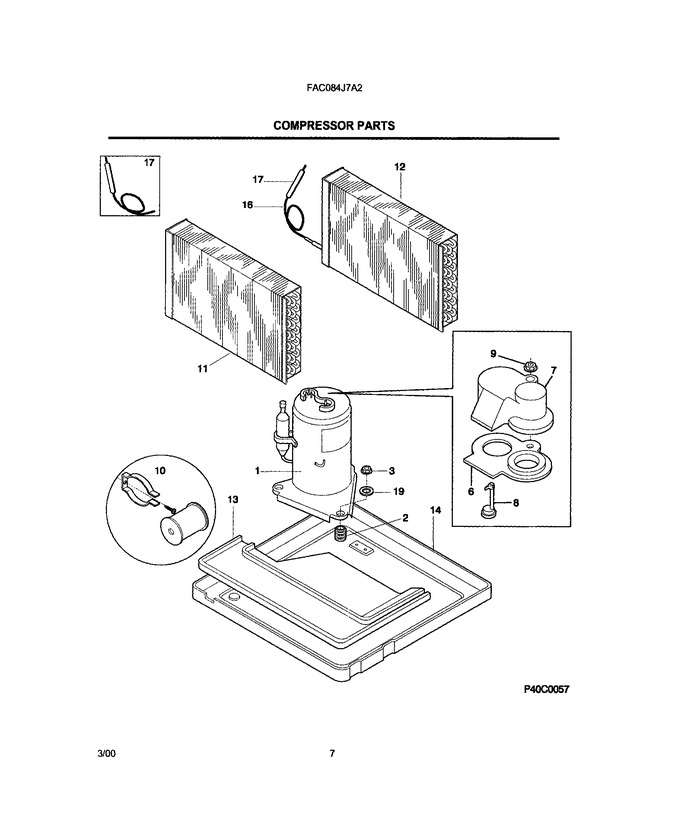

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304406829 | Compressor,san 806-551-42 |
|
$ 620.31 | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 3200281 | Cover-terminal |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5304413932 | Base Plate,compressor Mtg |
|
- | |||||
| 16 | 3203179 | Capillary Tube |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309619305 | Evaporator |
|
- | |||||
| F12 | 5303303195 | Condenser |
|
- | |||||
| F8 | 3202920 | Overload Protector |
|
- |
