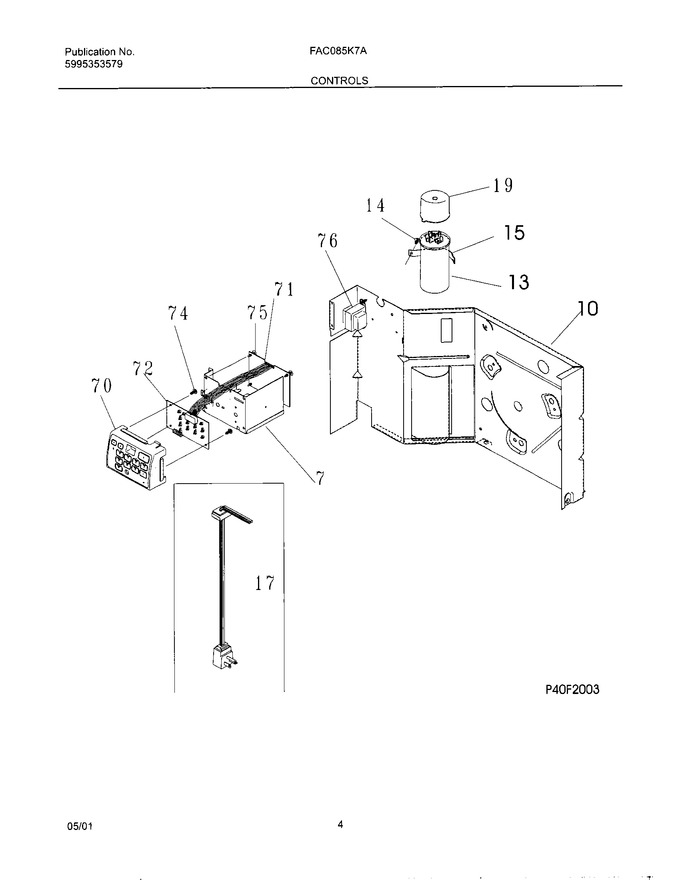

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309350301		Control Box		Appelez-nous	-
10	309602404		Bulkhead		Appelez-nous	-
13	5303318963		Capacitor,370 V		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
15	5303303086		Strap-capacitor		Appelez-nous	-
17	309343101		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
19	5303302855		Cover-capacitor		Appelez-nous	-
70	309342201		Enclosure,elec Control Mt		Appelez-nous	-
71	309350401		Pc Board,power,sagem		Appelez-nous	-
72	309350402		Pc Board,input		Appelez-nous	-
74	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111601		Transformer,120/12 Volt		Appelez-nous	-
NI	5304417643		Ribbon Protector		Appelez-nous	-
