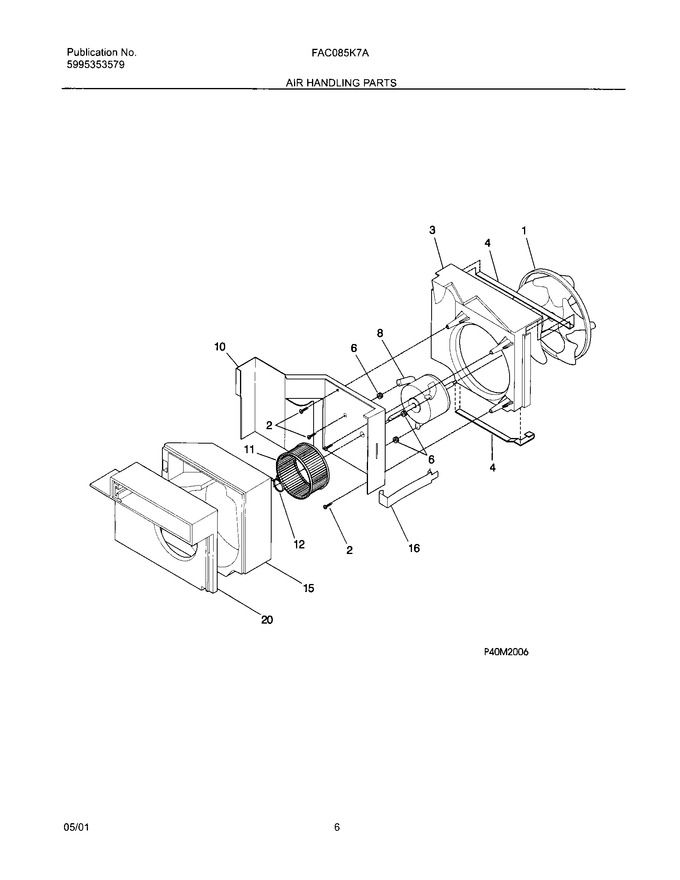

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309624502		Fan Blade,with Clamp				$ 85.31
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	309624201		Housing-fan		Appelez-nous	-
4	5303270043		Seal, Condenser		Appelez-nous	-
6	5300105402		Grommet-motor, (3)		Appelez-nous	-
8	309642401		Motor-fan,4plgehi		Appelez-nous	-
10	309602404		Bulkhead		Appelez-nous	-
11	309603301		Blower Wheel				$ 57.65
12	309112101		Clamp-blower		Appelez-nous	-
15	5304407653		Housing-blower		Appelez-nous	-
16	309100201		Clip		Appelez-nous	-
20	5304407654		Plate-blower Housing,scroll Plate		Appelez-nous	-
NI	5303012110		Clamp-blower				$ 8.14

    View Diagram in Separate Window       Print Part List
