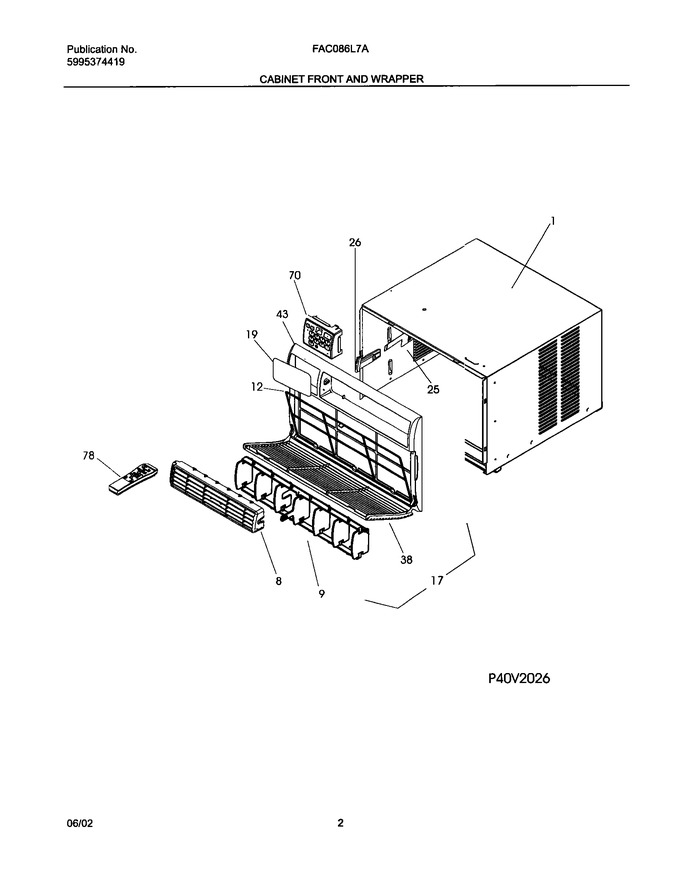

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309643602		Cabinet,wrapper		Appelez-nous	-
8	309640204		Louver Assy,includes 8 & 9		Appelez-nous	-
8	309639302		Louver,horizontal		Appelez-nous	-
9	309647201		Louver,vertical ,with Link		Appelez-nous	-
12	309343501		Filter-air,7.12 X 17.31 ,no Frame				$ 49.82
17	309640104		Front Assembly,cabinet ,w/8,9,12,38,43				$ 331.59
19	309340802		Overlay,control		Appelez-nous	-
25	309328603		Door,fresh Air Vent		Appelez-nous	-
26	309638201		Handle Vent Door		Appelez-nous	-
38	309646301		Panel,cabinet Front				$ 50.77
43	309646401		Frame,cabinet Front				$ 77.70
70	309342201		Enclosure,elec Control Mt		Appelez-nous	-
78	309342604		Remote Control,transmitter ,with Batteries		Appelez-nous	-
NI	309369904		Energy Guide,fac086l7a2		Appelez-nous	-
NI	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
NI	309330201		Detent-vent				$ 26.30
