SELECT A DIAGRAM

01 - Cover Sheet

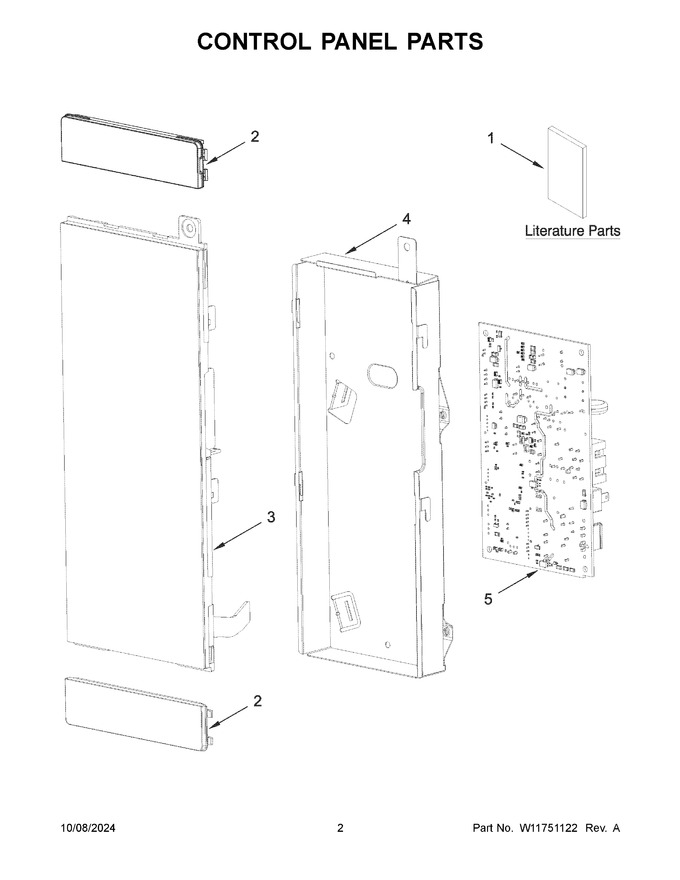

02 - Control Panel Parts


03 - Door And Vent Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Cooking And Cookware Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11646004		Manual, Owner's		Appelez-nous	-
2	W11593035		Cover, Console			Immediately	$ 40.78
3	W11744019		Panl-cntrl		Appelez-nous	-
4	W11707269		Backer, Control   (Replaces: W11604278)			Immediately	$ 45.36
5	W11744586		Cntrl-elec   (Replaces: W11743996)				$ 277.95
1A	W11646011		Guide, Quick Start		Appelez-nous	-
1B	W11646014		Sheet, Tech		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
