SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Vent Door Parts
03 - Door And Vent Door Parts

Diagram for 04 - Interior And Ventilation Parts
04 - Interior And Ventilation Parts

Diagram for 05 - Air Flow Parts
05 - Air Flow Parts

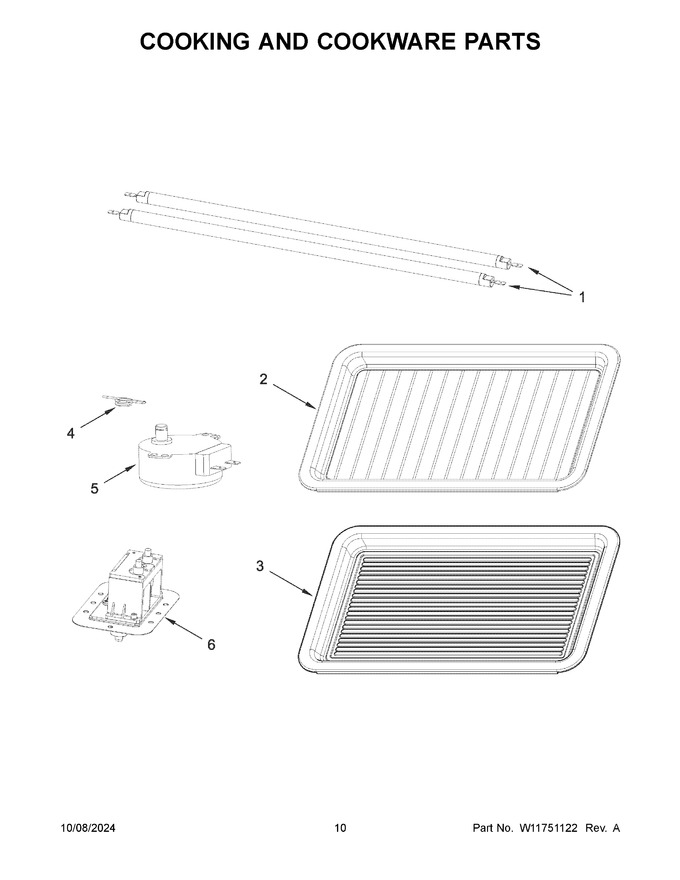

Diagram for 06 - Cooking And Cookware Parts
06 - Cooking And Cookware Parts

Diagram for 07 - Cabinet And Installation Parts
07 - Cabinet And Installation Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11744593 Heater, Quartz Grill   (Replaces: W11683865) Appelez-nous -
2 W11707190 Rack, Wire   (Replaces: W11600706) Special Order $ 36.14

3 W11843696 Pan, Toast   (Replaces: W11600710) Special Order $ 83.62

4 W11707330 Spring, Antenna   (Replaces: W11632382) Special Order $ 32.77

5 W11658672 Motor, Stirring Special Order $ 36.23

6 W11707338 Connector, Heating Plate   (Replaces: W11590208) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for YMMMF8030PZ00
