SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


08 - Wiring Diagram

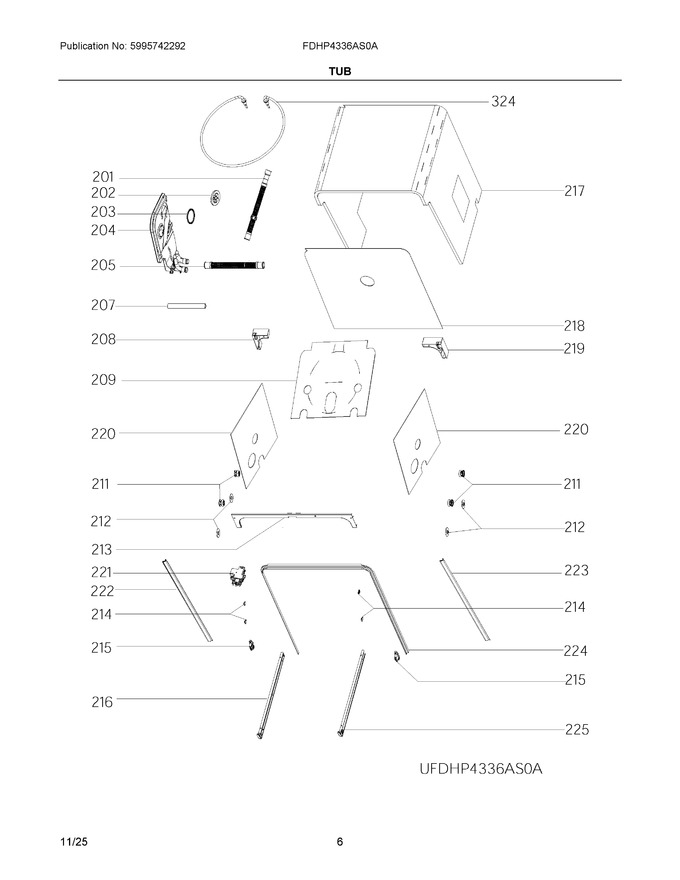

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
201	4056034855		Drain Hose, Assembly   (Replaces: 5304537605)			Immediately	$ 20.94
202	5304537606		Nut		Appelez-nous	-
203	5304516636		Gasket, Washer, (3)				$ 11.71
204	5304537607		Air Breather, Assembly				$ 41.36
205	5304537608		Drain Hose			Immediately	$ 9.15
207	5304519305		Pipe				$ 10.85
208	5304537610		Upper Back, Support, Left		Appelez-nous	-
209	4056034822		Damp   (Replaces: 5304537611)		Appelez-nous	-
211	5304519235		Roller, Tub, Upper Rack				$ 59.23
212	5304519236		Holder, Rack Roller		Appelez-nous	-
213	5304537613		Angle Plate		Appelez-nous	-
214	5304537614		Cap		Appelez-nous	-
215	5304537615		Stopper		Appelez-nous	-
216	5304537616		Upper Basket, Guider, Left		Appelez-nous	-
217	4056035720		Absorbent Cotton   (Replaces: 5304537617)		Appelez-nous	-
218	5304537618		Damp		Appelez-nous	-
219	5304537619		Upper Back, Support		Appelez-nous	-
220	5304537620		Damp		Appelez-nous	-
221	5304537621		Door Lock, Opener			Immediately	$ 66.92
222	5304537622		Door Protection Strip, Left		Appelez-nous	-
223	5304537623		Door Protection Strip, Right		Appelez-nous	-
224	5304537624		Seal				$ 21.06
225	5304537625		Upper Basket Guider, Right		Appelez-nous	-
324	5304537640		Heating Elements				$ 94.80

    View Diagram in Separate Window       Print Part List
