View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump

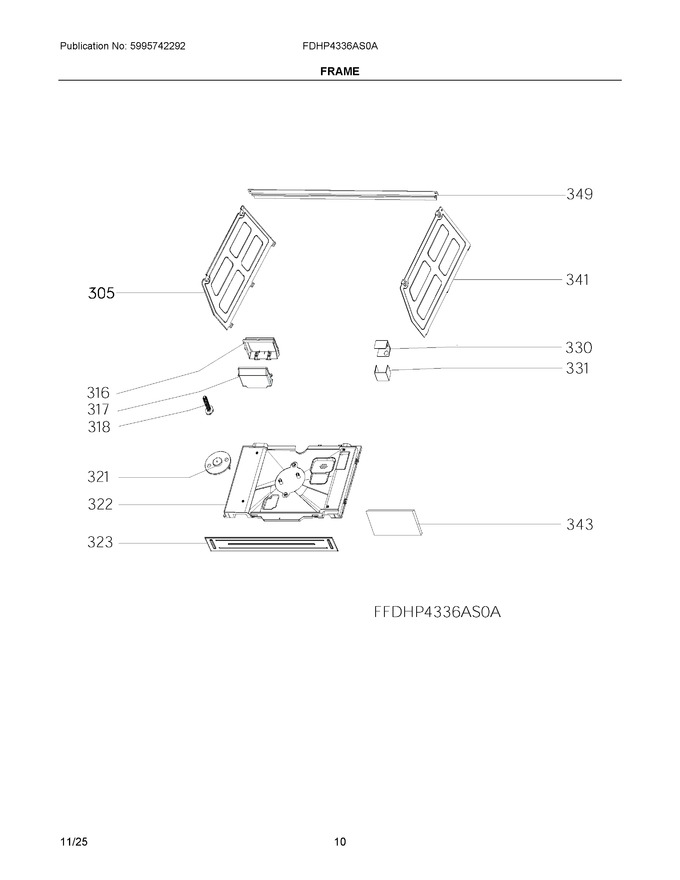

06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 305 | 5304537628 | Side Panel, Left |
|
- | |||||
| 316 | 5304537635 | Pcb Box |
|
- | |||||
| 317 | 5304537636 | Pcb Box |
|
- | |||||
| 318 | 5304519248 | Foot, Leveling |
|
$ 67.66 | |||||
| 321 | 5304516654 | Float |
|
$ 15.33 | |||||
| 322 | 5304537638 | Base Tray Cover |
|
- | |||||
| 323 | 5304532275 | Kickplate, Baseboard, Adjustable |
|
- | |||||
| 330 | 5304516657 | Box, Junction A |
|
- | |||||
| 331 | 5304516664 | Box, Junction B |
|
$ 19.52 | |||||
| 341 | 5304519238 | Panel, Side, Rh |
|
- | |||||
| 343 | 5304538126 | Main Pcb |
|
Immediately | $ 124.23 | ||||
| 349 | 5304537656 | Protective Strip |
|
$ 14.12 | |||||
| NI | 5304538351 | Installation Kit |
|
$ 14.02 |
