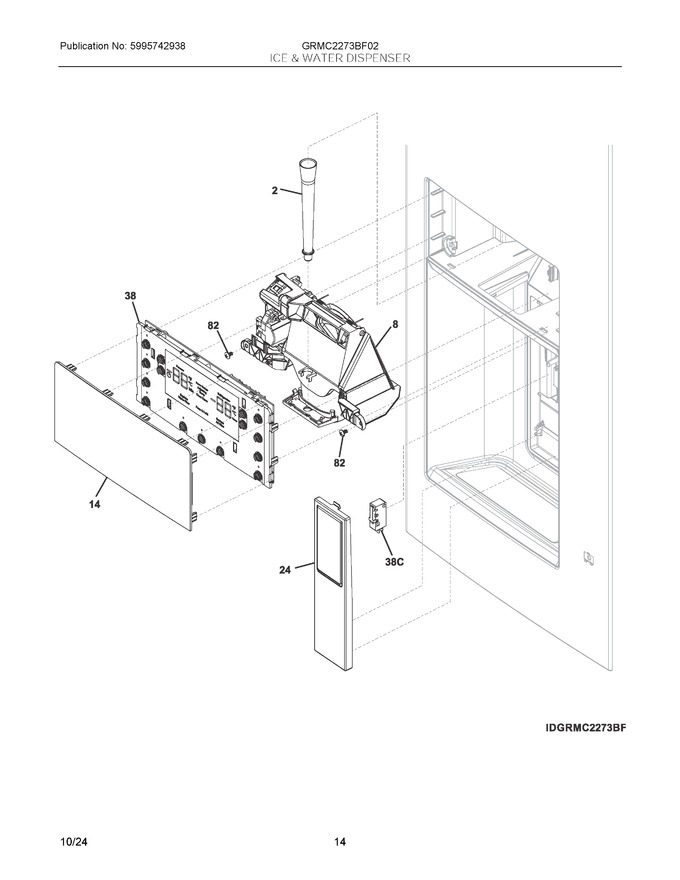

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304519194 | Guide, Water Tube, Dispenser |
|
$ 11.53 | |||||
| 8 | 5304529571 | Dispenser Assembly, Ice & Water, W/harness-led |
|
Immediately | $ 196.01 | ||||
| 14 | 5304529573 | Overlay, User Interface, Stainless |
|
Immediately | $ 158.09 | ||||
| 24 | 5304529574 | Paddle Assembly, Dispenser, Stainless |
|
$ 53.33 | |||||
| 38 | 5304538611 | Display Board, Assembly, User Interface (Replaces: 5304529572) |
|
Immediately | $ 183.32 | ||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| 38C | 5304523072 | Switch, Disp Paddle |
|
Immediately | $ 46.06 | ||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.11 |
