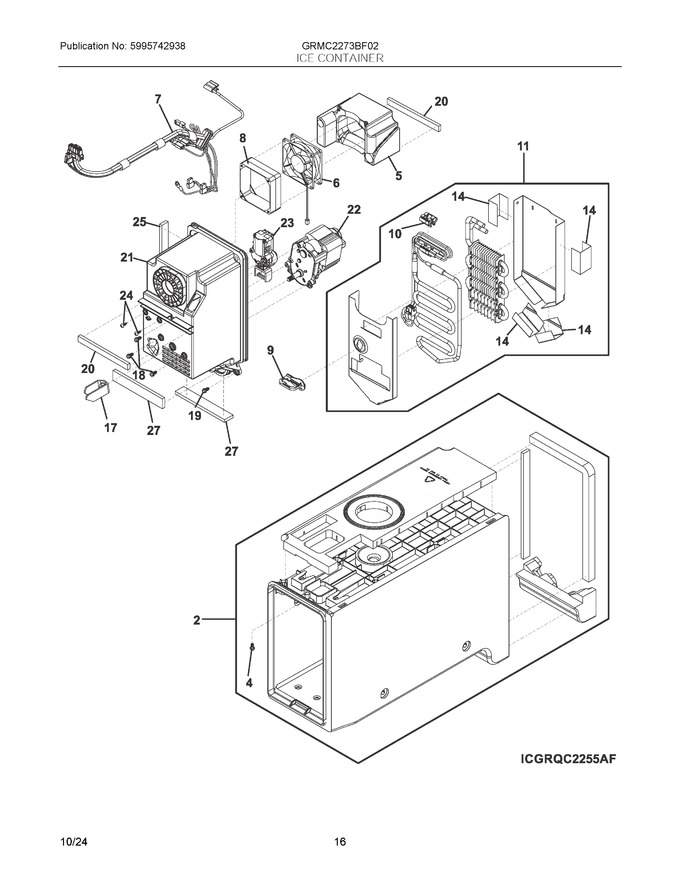

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303918901		Housing Assembly, Ice Maker, W/gaskets   (Replaces: 5304530081)			Immediately	$ 147.11
4	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
5	5304523073		Duct, Ice Maker Fan			Immediately	$ 40.29
6	5304524796		Fan Assembly, Motor, With Blade   (Replaces: 242119403)			Immediately	$ 176.35
7	5304532656		Harness, Wiring, Air Handler				$ 91.11
8	5304508063		Grommet, Fan			Immediately	$ 15.92
9	5304508037		Connector, Harness, Evap Cover				$ 14.41
10	5304519129		Bracket, Cantilever Shlf, Lh		Appelez-nous	-
11	5304519630		Evaporator Assembly, Complete, Ice Maker			Immediately	$ 143.99
14	5304485759		Tape, 3" X 1", Foil				$ 0.71
17	241829001		Bar-drive				$ 58.55
18	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
19	519088008		Screw, Vt Af/2p, 5 X 16		Appelez-nous	-
20	5304519209		Gasket, Housing, 6.3w, Ice Maker				$ 14.99
21	5304526818		Housing, Air Handler		Appelez-nous	-
22	5304519208		Motor, Auger			Immediately	$ 232.72
23	140159718018		Selector, Ice Crush/cube   (Replaces: 5304526819)				$ 38.84
24	218359202		Screw, Pan Head, 8-32 X 0.250				$ 10.63
25	242095424		Gasket, Evap Housing, Rear		Appelez-nous	-
27	5304519211		Gasket, Air Handler, Front				$ 9.45
NI	5303918784		Gasket-evap Housing, .250x.250x5.250   (Replaces: 242095404)			Immediately	$ 122.75
