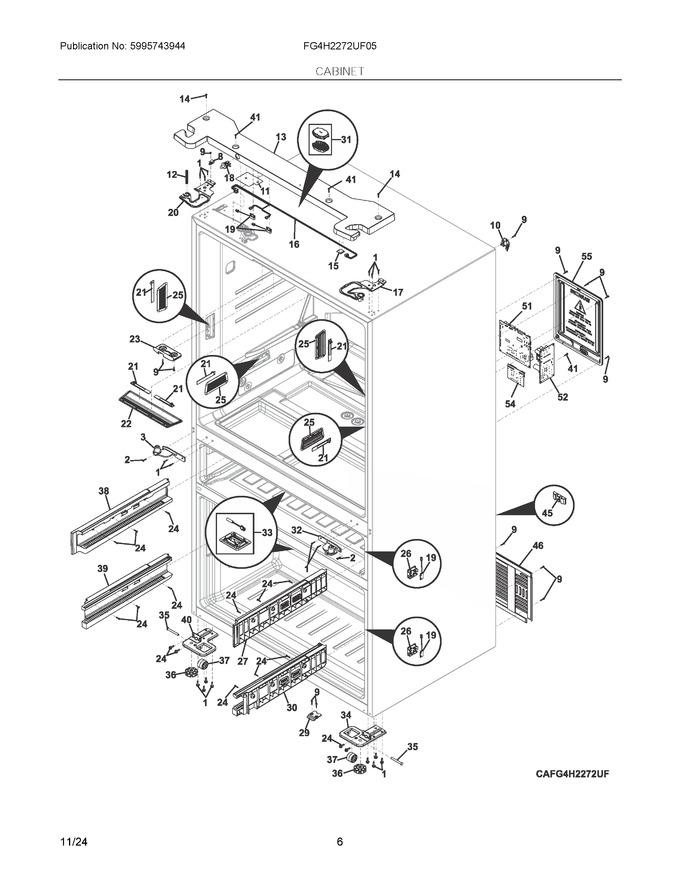

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.31 | ||||
| 2 | 5304519084 | Screw, Flange Pnhd Phl, 8g X 1/2 |
|
- | |||||
| 3 | 5304519085 | Hinge, Center, Lh |
|
- | |||||
| 5 | 5304519124 | Roller, Crisper Glide |
|
$ 16.84 | |||||
| 8 | 240396803 | Clamp, Tube/wiring, 5/16 |
|
$ 7.59 | |||||
| 9 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 10 | 5304519086 | Cover, Inlet Tube, Rear |
|
- | |||||
| 11 | 5304519087 | Shield, Eyebrow |
|
- | |||||
| 12 | 5304519067 | Spring, Tube Protection |
|
Immediately | $ 10.62 | ||||
| 13 | 5304519088 | Cover, Eyebrow |
|
- | |||||
| 14 | 5304519089 | Screw, Self Tapping, M5 X 0.8 |
|
$ 6.07 | |||||
| 15 | 5304524003 | Pc Board, Ambient, & Humidity |
|
$ 66.38 | |||||
| 16 | 5304519091 | Harness, Wiring, Eyebrow |
|
$ 52.02 | |||||
| 17 | 5304536152 | Hinge, Top, Rh (Replaces: 5304519092) |
|
$ 27.34 | |||||
| 18 | 5304519093 | Switch, Light, Gray |
|
$ 31.86 | |||||
| 19 | 5304527992 | Switch, Reed, Door (Replaces: 5304519094) |
|
Immediately | $ 81.69 | ||||
| 20 | 5304519095 | Hinge, Top, Lh |
|
- | |||||
| 21 | 5304525264 | Light Board, 3 Led Cluster, 6500k (Replaces: 242196211) |
|
Immediately | $ 53.64 | ||||
| 22 | 5304519096 | Lens, Led Light, Double |
|
- | |||||
| 23 | 5304519097 | Guide Assembly, Flip Mullion, Base |
|
- | |||||
| 24 | 5304519098 | Screw, Trilob, M4 X 12 |
|
$ 3.03 | |||||
| 25 | 5304519099 | Lens, Led Light |
|
Immediately | $ 12.13 | ||||
| 26 | 5304519100 | Cover, Reed Switch |
|
$ 7.96 | |||||
| 27 | 5304537051 | Support, Drawer Slider, Rh Middle (Replaces: 5304519101) |
|
- | |||||
| 29 | 5304519102 | Cover, Divider, Top |
|
- | |||||
| 30 | 5304523899 | Support, Drawer Slider, Rh Freezer (Replaces: 5304519103) |
|
Immediately | $ 38.07 | ||||
| 31 | 5303918849 | Housing Kit, 2 Connector |
|
$ 210.28 | |||||
| 32 | 5304519104 | Hinge, Middle, Rh |
|
$ 56.88 | |||||
| 33 | 5303918850 | Thermistor Kit, Temperature, W/housing |
|
$ 44.94 | |||||
| 34 | 5304519105 | Bracket, Leveling Foot, Rh |
|
$ 58.35 | |||||
| 35 | 811998302 | Shaft, Cabinet Roller |
|
$ 10.62 | |||||
| 36 | 5304519106 | Foot, Leveling, Stabilizer |
|
$ 17.44 | |||||
| 37 | 811666601 | Roller, Cabinet |
|
$ 9.10 | |||||
| 38 | 5304519107 | Support, Drawer Slider, Lh Middle |
|
- | |||||
| 39 | 5304523900 | Support, Drawer Slider, Lh Freezer (Replaces: 5304519108) |
|
Immediately | $ 37.93 | ||||
| 40 | 5304519109 | Bracket, Leveling Foot, Lh |
|
$ 57.64 | |||||
| 41 | 5304519110 | Screw, Trilob, M3 X 6 |
|
$ 3.03 | |||||
| 45 | 5304519111 | Clip, Tube, Rear |
|
$ 8.34 | |||||
| 46 | 140040610028 | Cover, Machine Compt., Rear (Replaces: 5304519112) |
|
- | |||||
| 51 | 5304531885 | Pc Board, Control, Main (Replaces: 5304538914) |
|
Immediately | $ 410.03 | ||||
| 52 | 5304526795 | Pc Board, Power Supply (Replaces: 5304519114) |
|
Immediately | $ 309.66 | ||||
| 54 | 5304519115 | Pc Board, Ac Line Filter, Emc |
|
Immediately | $ 247.43 | ||||
| 55 | 5304519117 | Cover, Assembly, Pcb Box |
|
- | |||||
| NI | 5304519116 | Harness, Wiring, Power Supply |
|
$ 19.36 |
