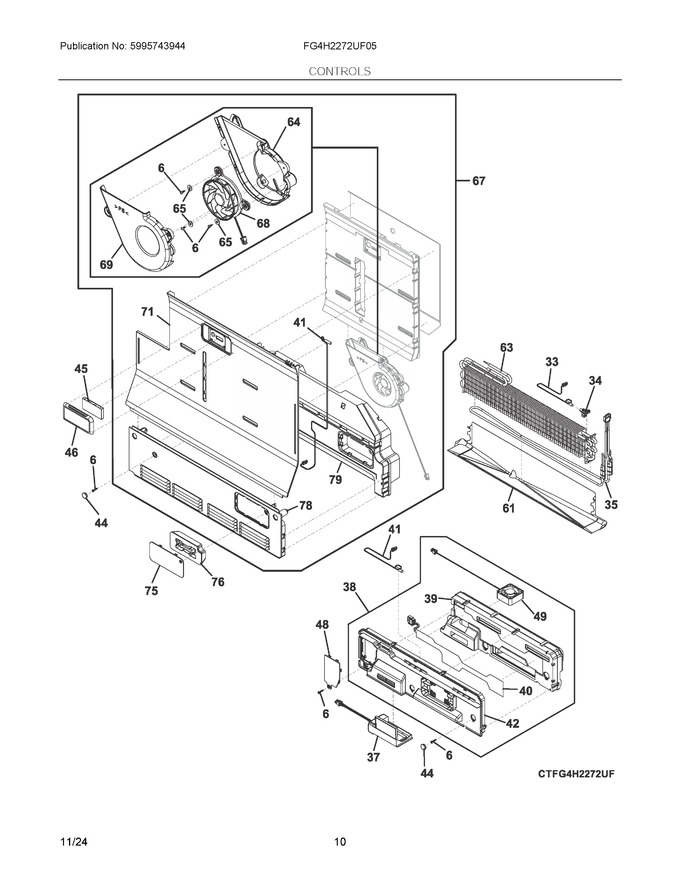

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	811949503		Screw, Truss, 4.2 X 13				$ 3.03
33	5303918851		Thermostat Kit, Defrost, W/connectors			Immediately	$ 36.75
34	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.19
35	140159197049		Heater, Defrost, Evaporator   (Replaces: 5304519164)				$ 103.24
37	5304519166		Baffle Assembly, Air Damper, Middle Drawer			Immediately	$ 129.08
38	5304519167		Cover Assembly, Air Flow, Middle Drawer, W/fan-heater				$ 93.40
39	5304519168		Duct Assembly, Air Flow, Middle Drawer				$ 20.48
40	5304523056		Heater Assembly, Middle Drawer   (Replaces: 5304519169)				$ 88.93
41	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
42	5304519170		Cover, Air Duct, Middle Drawer		Appelez-nous	-
44	811971601		Cover, Screw Hole		Appelez-nous	-
45	PAULTRA2		Filter, Air   (Replaces: 242047805)			Immediately	$ 42.18
46	140050812217		Cover, Air Filter, Fresh Food   (Replaces: 5304519171)		Appelez-nous	-
48	5304519172		Cover, Window, Middle Drawer				$ 11.17
49	5304519173		Fan Assembly, Middle Drawer, W/sleeve			Immediately	$ 137.93
61	5304519180		Drain Trough, Evaporator, Fresh Food		Appelez-nous	-
63	5304526811		Evaporator, Assembly, Fresh Food   (Replaces: 5304519181)			Immediately	$ 168.00
64	5304519182		Bracket, Fan Mounting, Ff Evaporator				$ 34.13
65	5304519183		Washer, Flat		Appelez-nous	-
67	5304524539		Cover Assembly, Air Duct, Fresh Food, Complete				$ 190.32
68	5304519186		Fan Assembly, Evaporator, Fresh Food			Immediately	$ 152.47
69	5304519187		Housing, Fan, Fresh Food				$ 30.34
71	5304519188		Cover, Air Duct, Fresh Food		Appelez-nous	-
75	5304519189		Cover, Window, Fresh Food		Appelez-nous	-
76	5304519190		Insulation, Window, Eps, Fresh Food		Appelez-nous	-
78	5304519191		Cover, Evaporator, Fresh Food		Appelez-nous	-
79	5304534782		Duct, Evaporator, Fresh Food   (Replaces: 5304519192)				$ 20.09
NI	811950601		Seal, 6x8, Foam Tape, 154" Roll		Appelez-nous	-
NIA	811950518		Seal, 6x20x450, Foam				$ 10.34
