Diagram # Part Number Description Series Availability Ships Price Add to Cart
7 309643802 Box-control Appelez-nous -
8 5303323284 Switch-selector Appelez-nous -
9 5303302852 Control-temperature Special Order $ 203.91

10 309643701 Bulkhead Appelez-nous -
12 309101202 Clip-control Bulb, (2) Appelez-nous -
13 5304421859 Capacitor,40+10/250 Vac Appelez-nous -
14 5303303691 Screw,truss Head `8-18ab X 0.375 ,w/nibs Appelez-nous -
15 309351901 Strap-capacitor Appelez-nous -
17 309343102 Cord-service Appelez-nous -
18 5303007754 Screw,6-32 X 0.188 Appelez-nous -
20 5303002600 Sleeve, Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

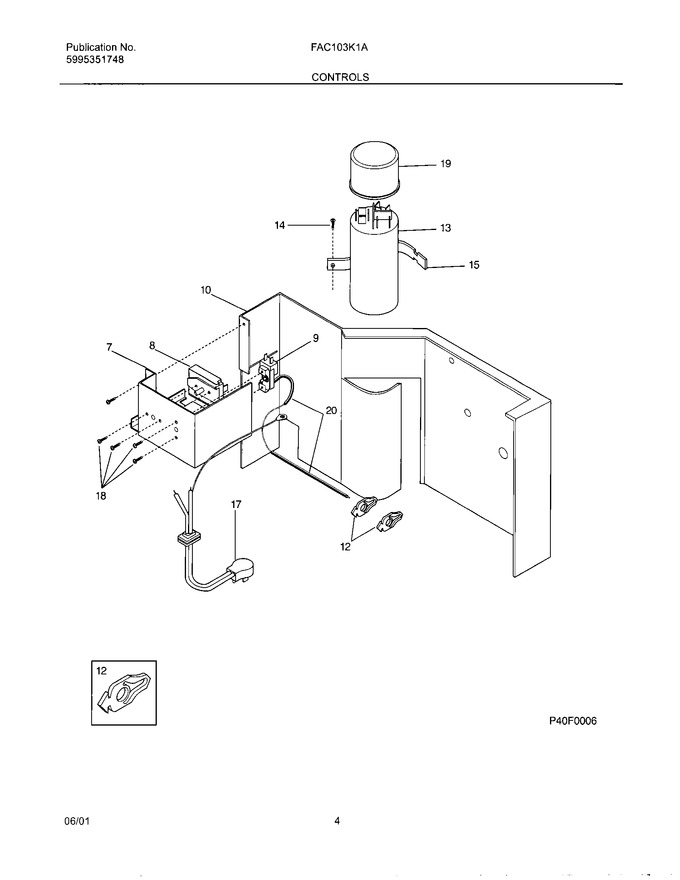

Diagram for FAC103K1A1
