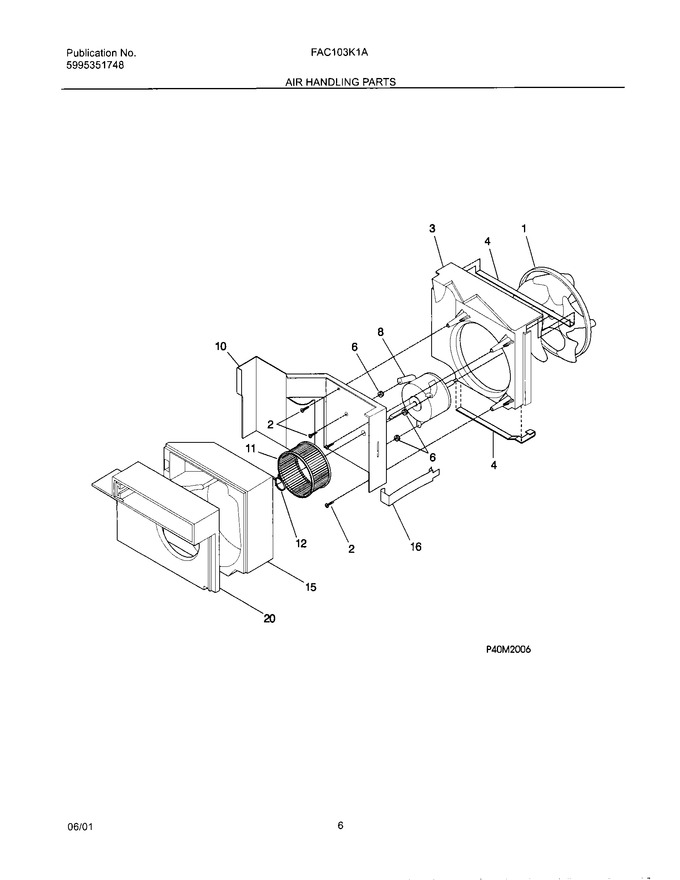

07 - Air Handler


09 - System


11 - Mounting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309645702		Fan Blade- Aasy		Appelez-nous	-
2	5303317224		Screw,indt Hex Head ,10-16 ,(3)		Appelez-nous	-
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
8	309642404		Motor-fan,4plgehi		Appelez-nous	-
10	309643701		Bulkhead		Appelez-nous	-
11	309643301		Blower Wheel,5``hub				$ 52.03
12	309112101		Clamp-blower		Appelez-nous	-
16	309100201		Clip		Appelez-nous	-
20	309643002		Plate-scroll		Appelez-nous	-
NI	5303012110		Clamp-blower				$ 8.14
