SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram

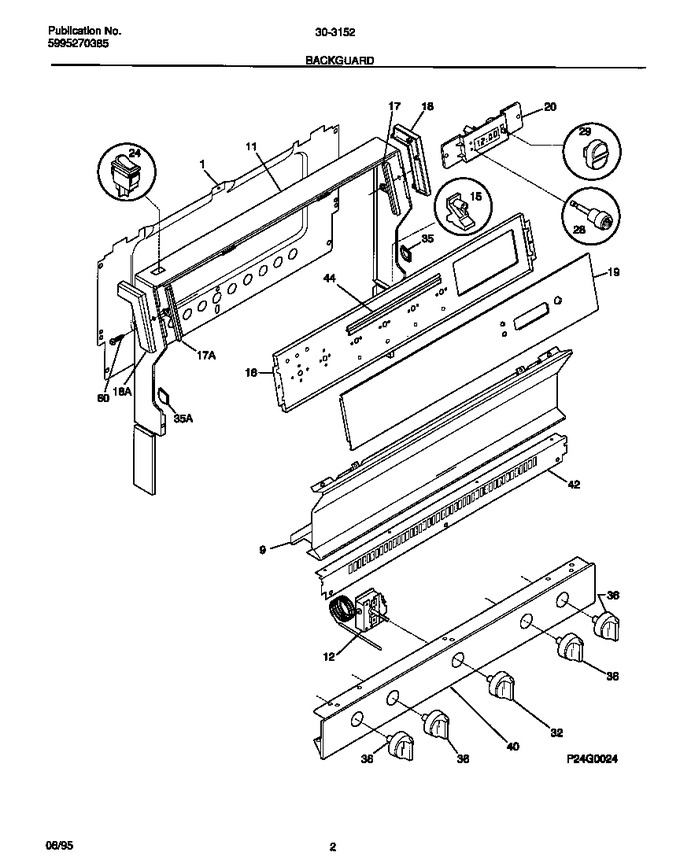

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043502		Trim, Splasher, Almond		Appelez-nous	-
11	316083712		Trim-wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	3204747		End Cap, Chrome, Rh		Appelez-nous	-
19	5303274448		Panel-control, Glass		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316022912		Knob-thermostat		Appelez-nous	-
35	3203077		End Cap,rh		Appelez-nous	-
36	316023014		Knob-control		Appelez-nous	-
40	316009230		Panel-manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*49800	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*49801	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	3204746		End Cap, Chrome, Lh		Appelez-nous	-
35A	3203076		End Cap,lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
