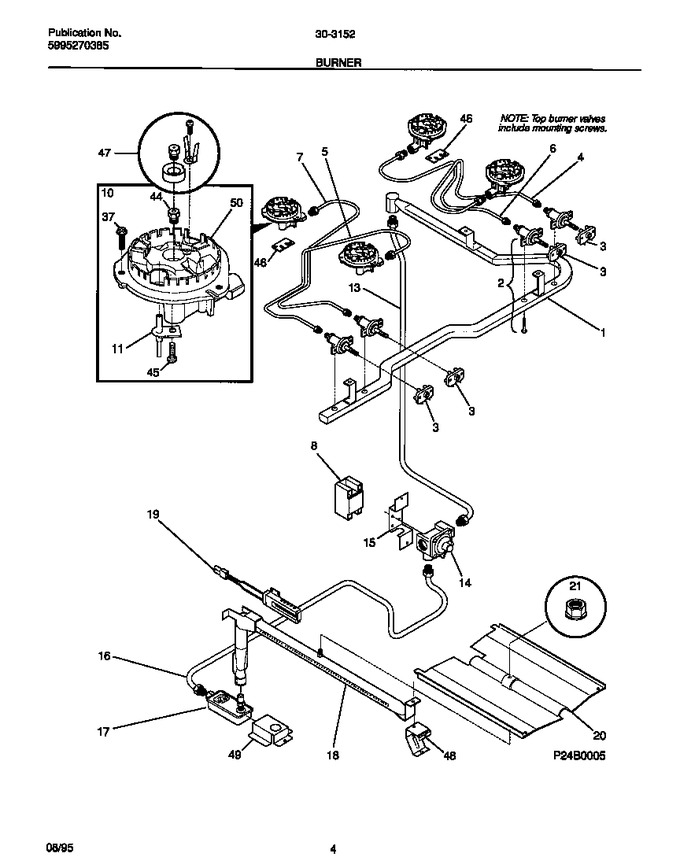

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316066201		Manifold Pipe				$ 65.47
2	316020400		Valve-top Burner, (4), With Mtg Screws				$ 117.44
3	316032000		Switch-igniter, (4)				$ 58.70
4	316059604		Tube-burner, Rf		Appelez-nous	-
5	316059613		Tube-burner, Lf   (Replaces: 316059605)				$ 87.16
6	316059606		Tube-burner, Rr		Appelez-nous	-
7	316059607		Tube-burner, Lr		Appelez-nous	-
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	5303935025		Burner Assy-top, Sealed, Small, (2), Includes, 11, 37, 4		Appelez-nous	-
11	316011200		Ignitor-top Burner, W/mtg Bracket			Immediately	$ 38.68
13	316065005		Tube, Aluminum, Rgltr To Manf, With Fittings				$ 91.51
14	5303935125		Regulator-pressure   (Replaces: 316054806)				$ 441.55
15	08067934		Bracket-regulator		Appelez-nous	-
16	316065006		Tube-valve To Rgltr, 3/8				$ 122.09
17	3203459		Valve-safety				$ 303.64
18	3131439		Burner-oven				$ 204.59
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316069301		Screw-burner Mtg, Hex Washer Head, M3 X 0.50   (Replaces: 316069300)				$ 2.99
44	5303210090		Orifice-top Burner, Small, (2)				$ 54.18
45	316011100		Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4)				$ 3.41
46	316074700		Plate-burner Tube		Appelez-nous	-
47	5303286386		Lp-conversion Kit				$ 143.29
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
50	5303935026		Burner-top, (4), Includes 37		Appelez-nous	-
14A	316021104		Screw-regulator/brkt, Hex, 8-18 X 3/8, Nick, 3 (not Illustrated)				$ 7.79
2A	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
3A	5303935040		Switch Harness Terminal Kit (not-illustrated)				$ 49.67
8A	5303289034		Harness-wiring, Module/igniter (not Illustrated)				$ 188.84
