SELECT A DIAGRAM

01 - Cover Sheet

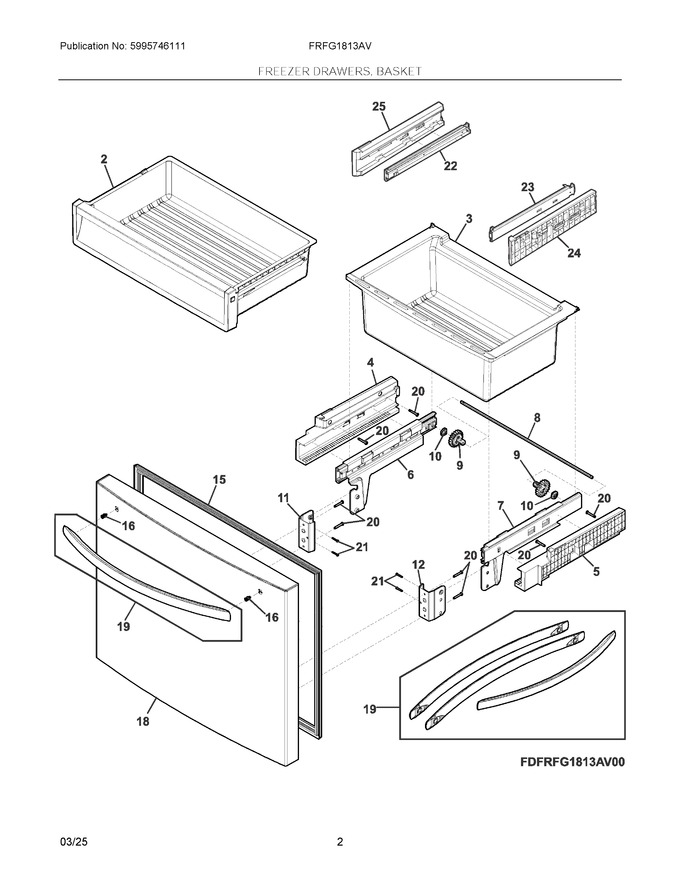

02 - Freezer Drawers, Basket


03 - Fresh Food Doors


04 - Cabinet/air Handling


05 - Shelves/water Filter


06 - Cooling System


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304529194		Drawer Assembly, Freezer, Full Width, Middle			Immediately	$ 81.06
3	5304536631		Basket, Freezer Drawer, Lower				$ 63.10
4	5304532280		Housing, Rail, Lh, Telescopic				$ 23.61
5	5304532281		Housing, Rail, Rh, Telescopic			Immediately	$ 22.50
6	5304529169		Slider Assembly, Telescopic, Lh				$ 202.94
7	5304529170		Slider Assembly, Telescopic, Rh				$ 202.99
8	5304537113		Shaft, Telescopic Rail   (Replaces: 5304529171)				$ 37.11
9	140025649017		Gear, Pinion   (Replaces: 140025649033)			Immediately	$ 4.58
10	5304529172		Pad, Bearing, Pinnion				$ 7.59
11	5304529176		Bracket, Adjustment, Lh, Drawer				$ 36.41
12	5304529175		Bracket, Adjustment, Rh, Drawer				$ 34.89
15	5304529174		Gasket, Freezer Door, Magnetic			Immediately	$ 189.79
16	5304519063		Screw, Handle Mounting			Immediately	$ 11.48
18	5304537370		Door Assembly, Complete, Stainless, Freezer				$ 225.88
19	5304529485		Handle Set, 3 Handles, Stainless, W/set Screws			Immediately	$ 266.04
20	5304529166		Screw, Phil Ph, 10g X 32mm, Typ B				$ 6.11
21	5304529168		Screw, Btn Hd, M8 X 1.25				$ 9.10
22	5304535762		Slide Extension, Rh			Immediately	$ 33.77
23	5304534927		Slide Extension, Lh			Immediately	$ 34.82
24	140013815018		Bracket, Slide Extension, Lh   (Replaces: 5304534011)			Immediately	$ 13.05
25	5304534012		Bracket, Slide Extension, Rh				$ 21.34
NIA	5304519066		Screw, Phil Pn Hd, M4 X 8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
