01 - Cover Sheet
02 - Freezer Drawers, Basket
03 - Fresh Food Doors
04 - Cabinet/air Handling

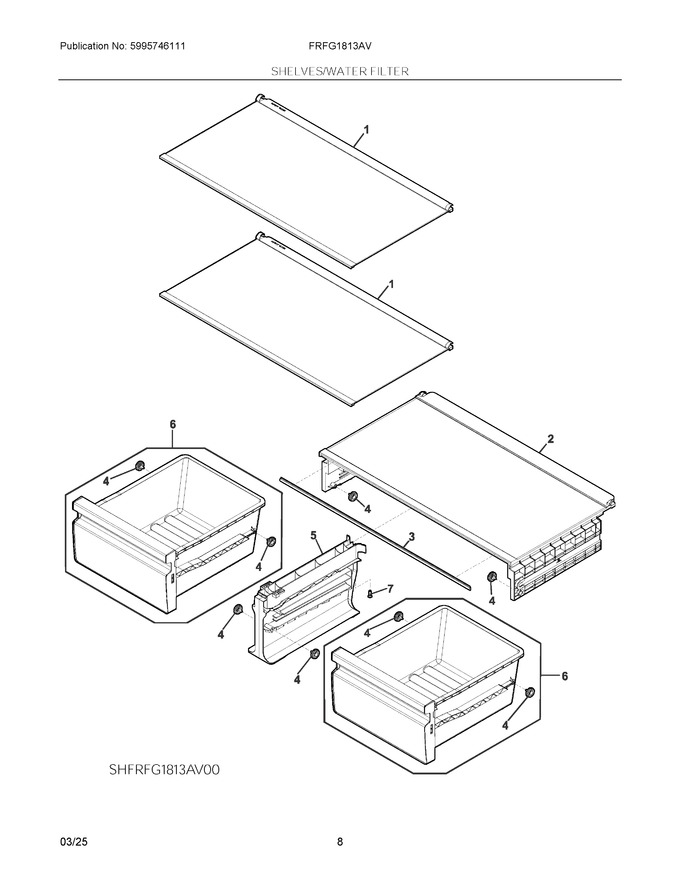

05 - Shelves/water Filter
06 - Cooling System
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529188 | Shelf, Assembly, Glass, W/trim |
|
$ 91.91 | |||||
| 2 | 5304529189 | Cover Assembly, Crisper |
|
Immediately | $ 208.96 | ||||
| 3 | 5304519140 | Gasket, Crisper Cover, Front (Replaces: 5304529192) |
|
Immediately | $ 23.98 | ||||
| 4 | 5304519124 | Roller, Crisper Glide |
|
$ 16.84 | |||||
| 5 | 140056574027 | Support, Crisper, Center |
|
- | |||||
| 6 | 140208235030 | Drawer Assembly, Crisper, W/rollers |
|
- | |||||
| 7 | 5304529191 | Screw, Phil Slot, 12g X 13mm, Typ B |
|
- | |||||
| NI | 5304519089 | Screw, Self-tapping, M5 X 0.8 |
|
$ 6.07 |
