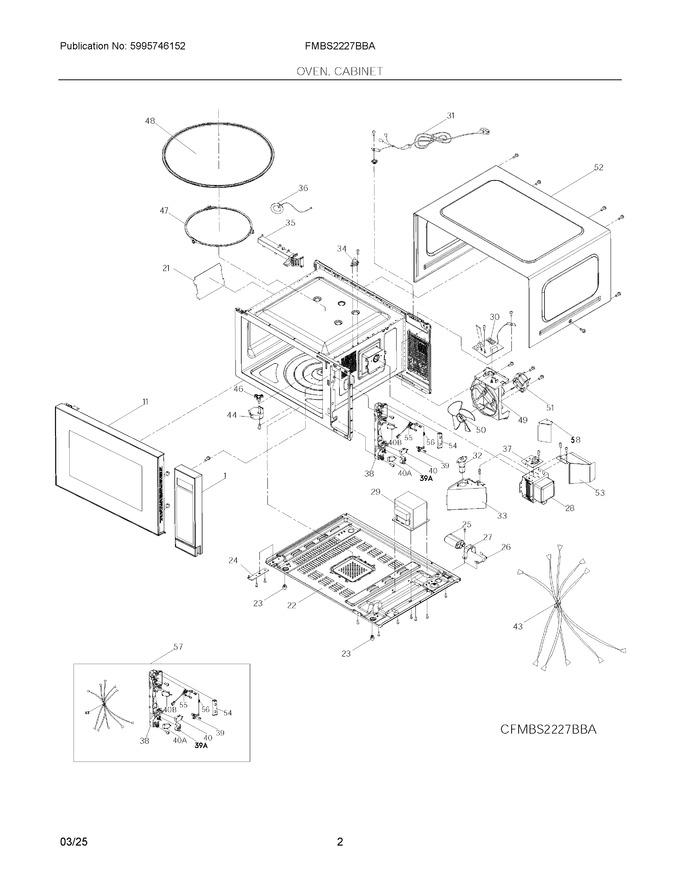

02 - Oven, Cabinet
03 - Control Panel, Door, Misc.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056021100 | Control Panel, Assembly, Complete |
|
- | |||||
| 11 | 4056021118 | Door Assembly, Complete, W/pcb |
|
- | |||||
| 21 | 5304505675 | Cover, Waveguide |
|
$ 11.57 | |||||
| 22 | 5304520012 | Base, Plate |
|
- | |||||
| 23 | 5304505674 | Foot, Cabinet Support, Rubber |
|
$ 11.57 | |||||
| 24 | 5304519320 | Hinge, Door, Lower |
|
- | |||||
| 25 | 5304528930 | Capacitor, High Voltage |
|
$ 66.51 | |||||
| 26 | 5304513459 | Diode, High Voltage |
|
Immediately | $ 30.37 | ||||
| 27 | 5304509477 | Retainer, Capacitor Strap |
|
- | |||||
| 28 | 5304513456 | Magnetron, High Voltage |
|
$ 283.53 | |||||
| 29 | 5304513457 | Transformer, High Voltage |
|
$ 414.67 | |||||
| 30 | 5304515179 | Filter, Noise, Electronic |
|
Immediately | $ 93.24 | ||||
| 31 | 5304520015 | Power Cord, Service |
|
$ 106.27 | |||||
| 32 | 5304527876 | Bulb, Lamp |
|
- | |||||
| 33 | 5304520017 | Cover, Transformer, Wind Guide |
|
- | |||||
| 34 | 5304520011 | Thermostat, 120/80h |
|
$ 17.35 | |||||
| 35 | 5304520016 | Guide, Wind, Plastic |
|
- | |||||
| 36 | 4056021142 | Sensor, Humidity, Control |
|
- | |||||
| 37 | 5304515183 | Thermostat, Assembly, W/bracket |
|
Immediately | $ 29.59 | ||||
| 38 | 5304537449 | Bracket, Latch |
|
$ 14.36 | |||||
| 39 | 5304537450 | Lever, Interlock, Lower |
|
- | |||||
| 40 | 5304509460 | Microswitch, Secondary (Replaces: 5304520020) |
|
Immediately | $ 45.27 | ||||
| 43 | 5304520022 | Harness, Wiring, Main |
|
$ 117.69 | |||||
| 44 | 5304532545 | Motor, Turntable |
|
Immediately | $ 46.27 | ||||
| 46 | 5304520014 | Coupler, Turntable Tray |
|
- | |||||
| 47 | 5304505673 | Support, Turntable, With Rollers |
|
$ 45.40 | |||||
| 48 | 5304509621 | Tray, Turntable |
|
$ 154.61 | |||||
| 49 | 5304519349 | Guide, Fan |
|
- | |||||
| 50 | 5304519350 | Blade, Fan |
|
$ 16.92 | |||||
| 51 | 5304509471 | Motor, Cooling Fan |
|
Immediately | $ 150.42 | ||||
| 52 | 5304520023 | Wrapper, Outer Cabinet |
|
- | |||||
| 53 | 5304513477 | Guide, Air, Magnetron |
|
$ 21.55 | |||||
| 54 | 5304537446 | Cover, Plate |
|
- | |||||
| 55 | 5304537442 | Door Lock, Lower |
|
- | |||||
| 56 | 5304537445 | Spring, Door Latch |
|
- | |||||
| 57 | 5304537457 | Interlock, Assembly |
|
$ 154.66 | |||||
| 58 | 5304520024 | Cover, Wind Guide, Air Duct |
|
- | |||||
| 39A | 5304537444 | Interlock, Lever, Lower |
|
- | |||||
| 40A | 5304520019 | Microswitch |
|
$ 25.50 | |||||
| 40B | 5304520021 | Microswitch |
|
Immediately | $ 16.68 |
